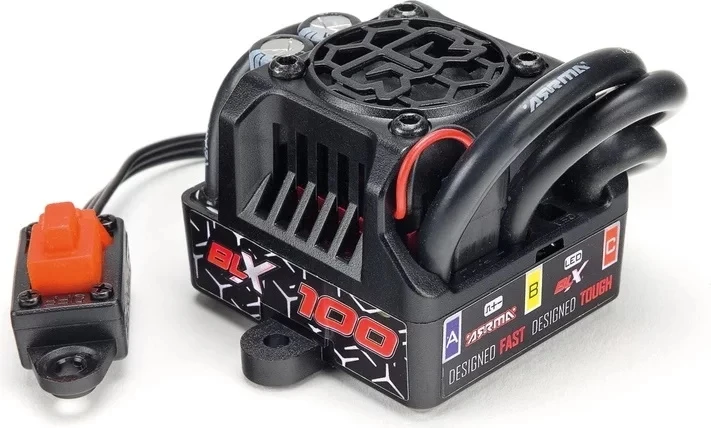

Arrma RC BLX100 Brushless Esc – 3S

OVERVIEW: The BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.

FEATURES: Fitted with a super-reliable EC5 connector and sporting abuilt-in cooling fan for reduced heat during intense driving action, theBLX100 ESC has over voltage protection, and a two-stage LiPo cut offfor added cell management.
The fitted 12AWG high-quality wires and 6V BEC unit are combined with athree mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimatedriving experience.

SPECIFICATION
Battery usage 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH
Low Voltage Cut-Off (LVC) 3.4V per cell
Thermal Protection Temperature 125°C / 257°F
Over-Voltage Protection Over 12.6V
BEC Voltage 6V
BEC Current 4A
ESC Length 43mm / 1.69″
ESC Height 34mm / 1.34″
ESC Width 54.5mm / 2.15″ (Including hold-down tabs)
ESC Weight 120g / 4.2oz
Receiver Wire Length 170mm / 6.70″
Battery Wire Length 125mm / 4.92″
Motor Wire Length (Including Connector) 200mm / 7.87″
Switch Length 110mm / 4.33″
Switch Width 12.8mm / 0.5″
Switch Height 18mm / 0.71″
Motor Bullet Connector Size 4mm / 0.16″
Wire Specifications 12AWG
ESC Battery Connector Type EC5

INCLUDES:
1 x BLX100 Brushless 3S ESC
