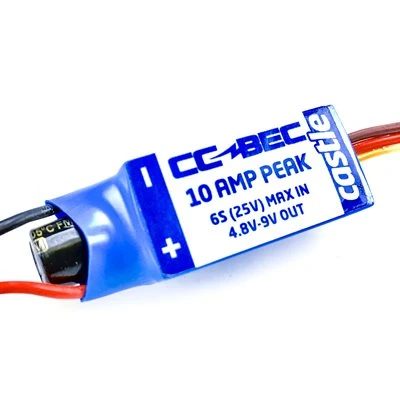

Castle BEC 10A Peak – 25V – 4.8-9v SBEC

Power Management

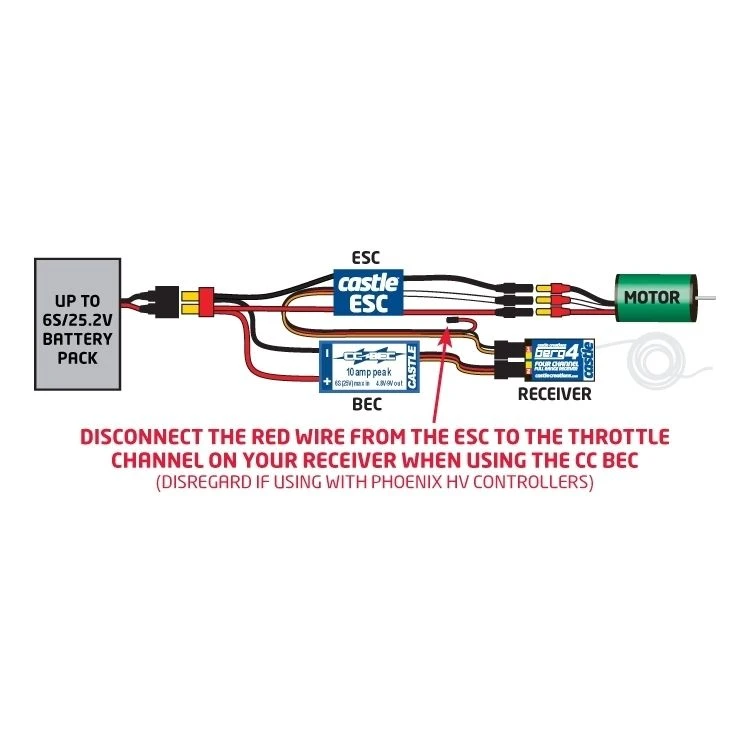

CCBEC (Battery Eliminator Circuit) is a small device that eliminates theneed for a receiver battery. It draws voltage from the motor batteriesand drops it to a voltage level that is suitable for your receiver andservos. This is required in applications which use high power servos,where the ESC does not have an internal BEC, or the  existing BEC isinadequate.

The CC BEC is designed to operate at up to 6S LiPowith a 10A* peak servo load. Generally used for cars utilizing highpowered digital servos. It is also useful in smaller airplanes using 4standard non-digital servos or 6 micro servos. Perfect for 450 size orsmaller helis.

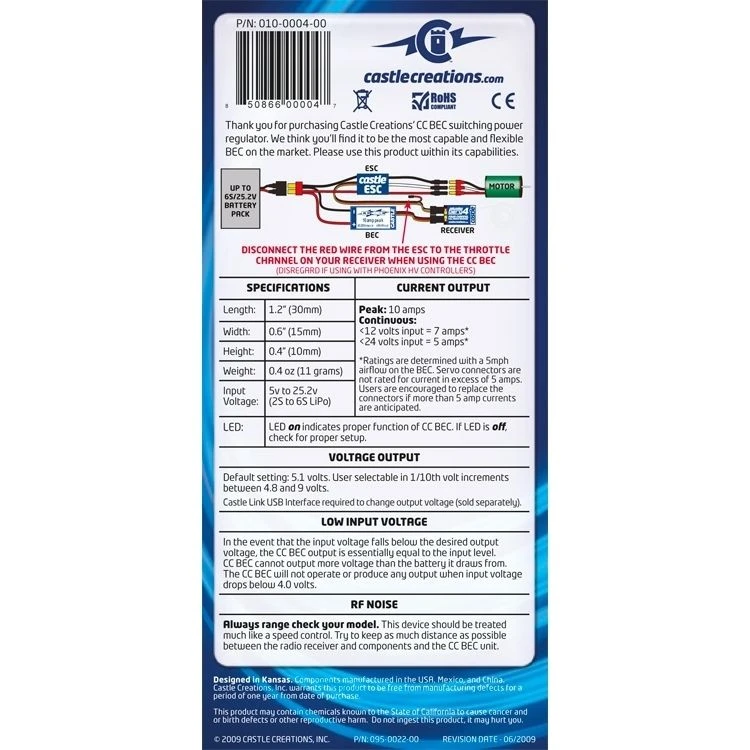

Spec:

• Max load: 10A peak / up to 12V input = 7A & up to 24V input = 5A
• Volts: 5-25V / 2-6S LiPo
• Adjustable output: 4.8-9V
• Size: 30 x 15 x 10 mm
• Weight: 11 g

*Weight without wires
**Ratings are determined with a 5mph airflow on the BEC.

NOTE!

1. Ratings are determined with a 5mph airflow at 25° C (77° F).

2. Adjustable Output Voltage may be set with Castle Link (sold separately).

3. Weight with full length wires, power wires may be shortened to save weight depending on application.
