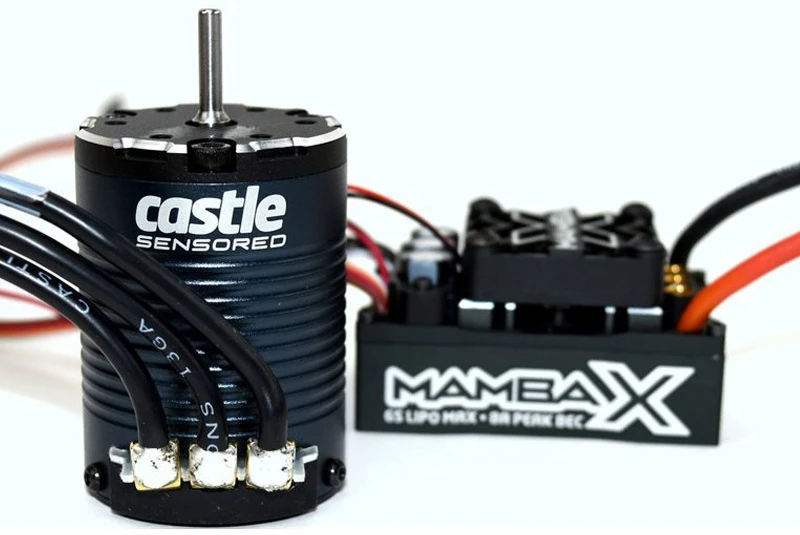

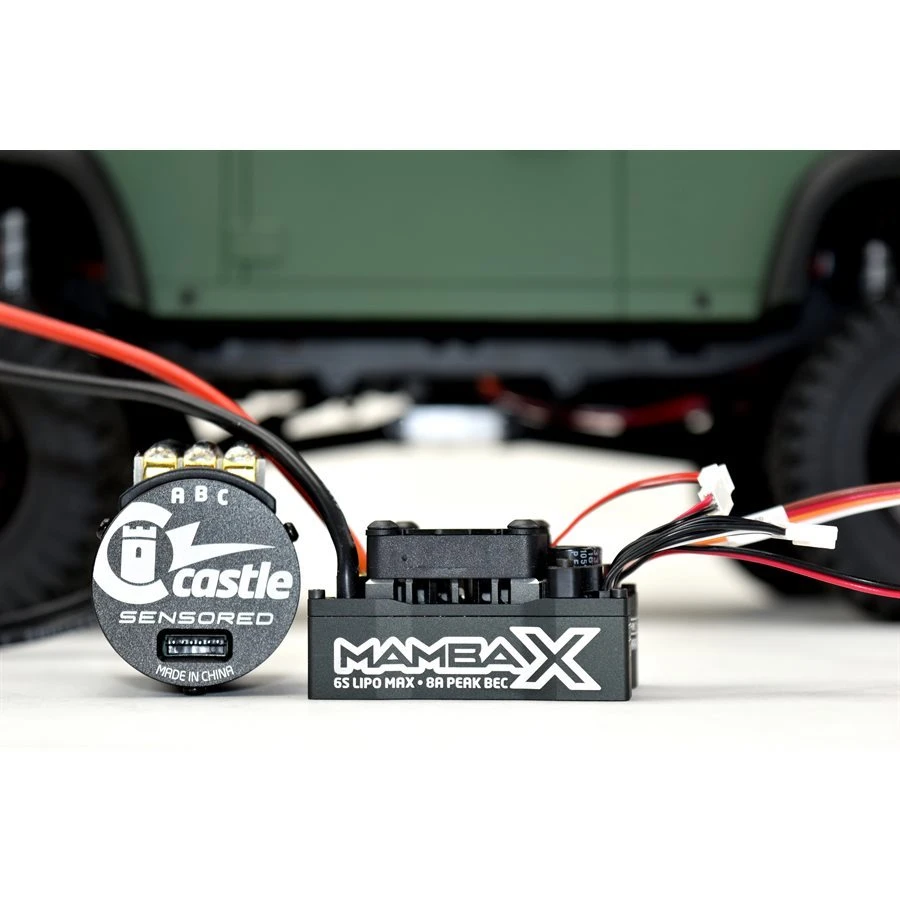

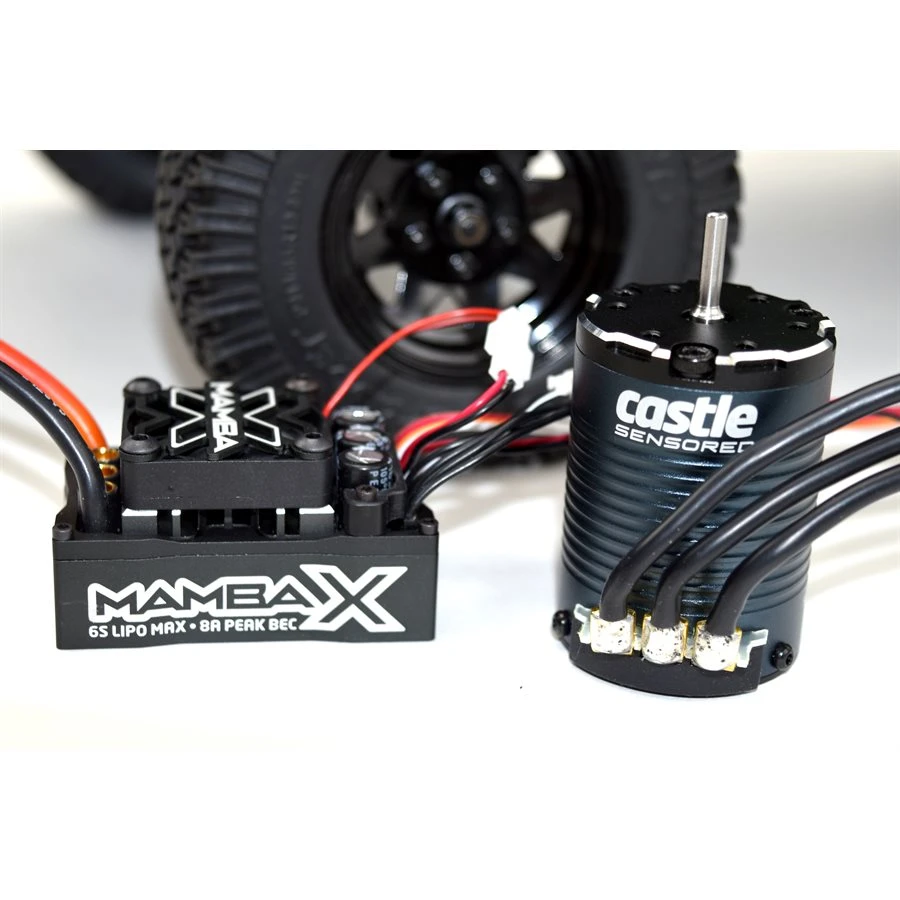

Castle Creations Mamba X Crawler Edition 25.2V ESC & 1406-1900KV Sensored Waterproof Combo

Mamba X Crawler Edition is our latest offering for the crawling crowd. We have taken our new 1406 low kv crawler motors and paired it with the high power, ultra-reliable Mamba X ESC. This combo is ideal for low speed crawling or trail running in vehicles weighing up to 9lbs on 3s or 4s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation.

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. Whether you are racing at the track with your 2wd buggy, bashing through puddles and mud in your SCT or monster truck, or navigating a hardcore crawling excursion, this controller raises the bar to a whole new level.

ESCs have a tough life – landing extreme jumps, experiencing accidental collisions, and splashing through the occasional puddle. As R/C enthusiast themselves, Castle engineers understand this and designed the Mamba X to endure these situations and power through them. It is housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale race buggies. SmartSense™ allows you to take advantage of smooth, cog-free, and predictable sensored starts, and Castles new and improved throttle response keeps you ahead of the competition.

The Mamba X is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations’ 1-year warranty and unparalleled “make-it-right” customer support.

Features:

• ESC voltage range 2S-6S
• 1406-1900Kv 2S-4S sensored motor
• Waterproof
• 8A Adjustable BEC (5.25V-8.0V)
• Data-logging
• Telemetry Link Capable
• Rugged CNC Aluminum Case
• Castle Link Programming Support
• Convenient Transmitter Programming
• Auxiliary Wire Functionality for “on-the-fly” adjustments
• SmartSense™Technology
• Integrated Capacitors
• Removable 30mm Cooling Fan
• Integrated 4mm Bullet Connectors
• 12 AWG Power Wires
• Waterproof Switch
• Audible Alerts and LED Alerts for easy diagnoses of common issues
• ROAR Certified ESC
• RECON G6 Certified ESC


Includes:

• Mamba X ESC with Sensor Harness
• 1406-1900Kv 4-pole 12-slot sensored motor
• Coupon for free Castle Link USB
• Mamba Decals
• Driver’s Ed and Quick Start Guide
• Gearing Chart for Castle Motors

*In 1/8th scale setups, the Mamba X is intended to be used for off-road racing in buggies weighing up to 9 lbs (including batteries and ready-to-run). In these 1/8th scale racing setups, the Mamba X should be run at 4S Lipo (16.8V) max and is recommended to be paired with the Castle 1512-1800Kv (P/N: 060-0062-00) or Castle 1515-2200Kv (P/N: 060-0063-00) motor, with appropriate gearing only.

Mamba X ESC Specifications:

• Input Voltage Range:MIN: 2S LiPo
• MAX: 6S LiPo (25.2V) (4s max with included 1900kv motor)
• BEC Specifications:Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
• perating Environment:Waterproof* design allows for use in nearly any environment.
• Brake:Proportional
• Reversible:Yes, but may be disabled for racing.
• On/Off Switch:Yes
• Cooling Fan:Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
• Size:Length: 2.14″ (54.4mm)
• Width: 1.39″ (35.2mm)
• Height: 1.18″ (30.0mm)
• Weight (with wires):3.56 oz. (101g)
• Connectors:4.0mm female bullets for motor connection

Items Needed for Operation: Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.

Product Use Statements:

*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. T Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Max. Recommended Vehicle Weight:Less than 9lbs, with batteries, ready-to-run with included 1406 – 1900kv motor in low speed crawlers; 5lbs maximum for more aggressive setups like rock racing and extended hill climbing
Programmability:Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software or a B-LINK Bluetooth Adapter (sold separately) and the Castle Link iOS App.

Motor specs

• Input Voltage Range:2S-4S LiPo
• Kv:1900
• Max. RPM:100,000
• Size:Length: 49.5mm
• Diameter: 36mm
• Weight (w/wires):197 g / 6.9oz
• Shaft Size:Length: 15mm
• Diameter: 1/8″ (3.17mm)
• Mounting Hole Specifications:M3 @ 25mm
• Cooling Fan:Optional – Coming Soon
• Connectors:4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire.
• Application Guidelines:Ideal for 1:10 scale low speed rock crawlers/trail runners on 3S-4S weighing less than 9lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.

Max. Recommended Vehicle Weight:9lbs when used for low speed/moderate driving style like rock crawling and trail running;
5lbs for more racing and aggressive driving styles.

Tech Notes:
Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack’s suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
Applying voltages higher than 25.2V will cause irreparable damage to ESC.
We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs.
