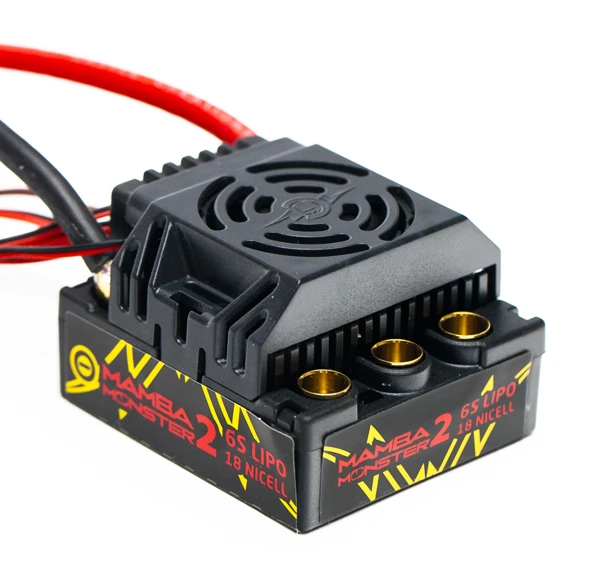

Castle Mamba Monster 2 Extreme 1:8 Esc

Meet the Monster.

Castle Creations’ introduction of the Mamba Monster was abreak-through moment for R/C modelers wanting to experience what seemedto be unobtainable. Brute power and sheer stamina have made this ourlegacy ?power up? for popular 1/8th scale buggies, truggies and on roadvehicles and 1/10th scale monster trucks.

The currentversion we call Mamba Monster 2. The ESC is capable of 2S LiPo to amaximum of 6S LiPo, and is now waterproof. This upgrade allows usersto run their vehicles through the morningdew, across the soggy snow or just about anywhere else you?d beinterested in running a 1/8th scale RC buggy or truck. We?ve updatedthe case, allowing users easy access to fan changes, if necessary.Additionally, we?ve added solder posts to permit users to change batterywire length and direction as needed for an even more custom install.

Industry Leading Software Functions
The Mamba Monster 2 includes a coupon for a free Castle Link USB device.This allows access to the full programming suite of adjustable settingsthat tune and tweak your vehicle to your preferences, resulting in anincredible RC driving experience.

Castle Link adjustable settings include:

• Throttle
• Braking curve
• Drag brake
• Auto LiPo cutoff
• Punch Control
• Reverse Type
• Motor Type

Additional Castle Link benefits include:

• Access to all firmware updates, including added features sets released from Castle Engineering at no charge.
• Intuitive Demo Mode capability
• Ability to save basic to complex setup profiles for later use
• The Castle Link adapter works on ALL of the Castle productsthat feature Castle Link programmability ? no need to worry aboutcompatibility or which version you have.

Award Winning Combination
The Mamba Monster 2 packs a punch that can?t be duplicated, it canbe purchased alone, or in combination with one of our highly efficient 1512 or 1515series motors. They both feature high quality oversized bearings,sintered Neodymium magnets, superior electromagnetic design, andrigorous quality control resulting in a Monster motor we can put ourname on.

Waterproof statement:Not intended for operation while submerged in liquid. If unit isoperated in wet conditions, rinse with fresh water to remove dirt orcorrosives, then fully dry unit.

Spec:

Input Voltage Range: MIN: 2S LiPo; MAX: 6S LiPo

BEC Specifications: User selectable output between 5 and 7 volts

Operating Environment: Waterproof* design allows for use in nearly any environment. (See Product Use Statements)

Brake: Proportional

Reversible: Yes – with lockout

On/Off Switch: Yes

ESC Cooling Fan: Yes, factory equipped, fully removeable*. (See Product Use Statements)

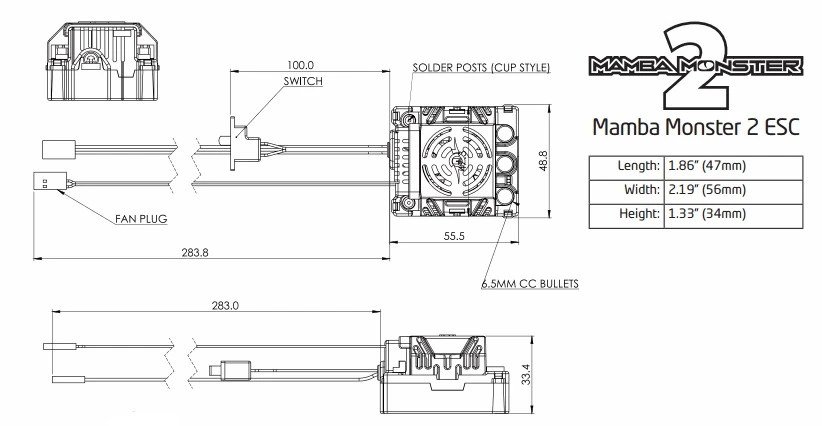

Size: 47mm x 56mm x 34 mm

Weight (w/o battery connector soldered to ESC): 111.5g

Items Needed for Operation: Battery Connector required, Castle 6.5mm Connectors are recommended.

Product Use Statements:

*Although Monster 2 and Castle brushless motors are waterproof, they arenot intended for operation while completely submerged in liquid. Theycan corrode when exposed to corrosive materials, such as salt water.Always rinse the ESC and motor with clean water after exposure tocorrosives or dirt. While the motor and controller may be waterproof, wesuggest users confirm that the rest of their vehicle, including thebatteries, servos, radio and chassis are also waterproof before exposingthem to liquids of any kind. *The cooling fan must be removed prior todriving in wet conditions. It is not waterproof.

Application Guidelines:

Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 15 lbs, with batteries, ready-to-run.

Tech Notes:

Not all LiPos are created equal, and surge ratings should never be usedto determine a pack?s suitability for a brushless application. Use theCONTINUOUS C rating only. Mamba Monster setups frequently hit 100+ ampsin peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with adischarge rating of at least 30C (or high quality 25C batteries such asTraxxas© Power Cells©). Our experience suggests using only mild gearratios with NiMH cells. Do not attempt to use NiMH cells in extremesetups.

Awards:

2009 ? 1st Place – Speed Control
(RC Driver Voice Your Choice Awards)

2010 ? 1st Place ? Speed Control
(RC Car Action Readers Choice Awards)

2012 ? 1st Place ? Speed Control
(RC Car Action Readers Choice Awards)
