Castle Sidewinder 8th for 1:8 sized cars
Sidewinder 8th!

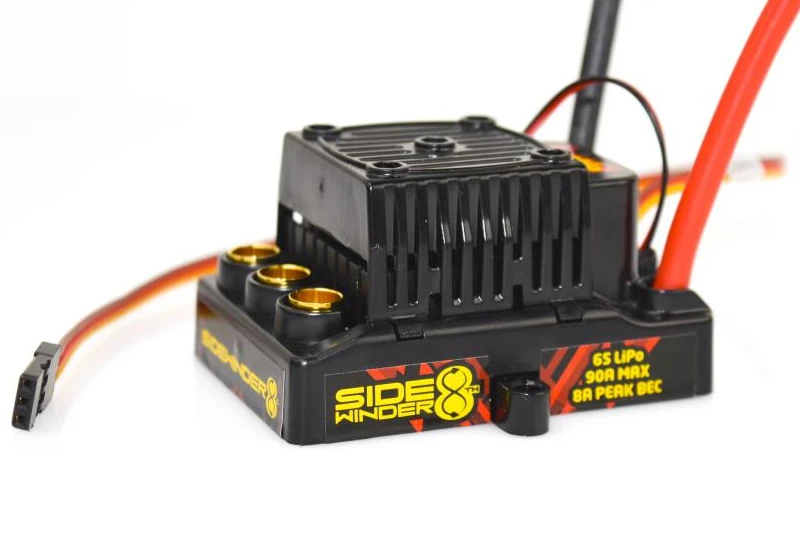

Sidewinder 8th is our sport 1:8 scale waterproof* ESC that we have paired with the 1515B-2200Kv – until now! It’s perfect for entry level, weekend basher, or serious road warriors seeking the benefits of an affordable brushless upgrade.Capable of 2-6S LiPo, with an 8 amp peak BEC the Sidewinder 8 is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 5 kg. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation.
Features:
- 2s – 6s LiPo (25.2V) use in vehicles up to 5 kg with battery, ready-to-run.
- Sensorless motor operation.
- Large 6.5mm female motor bullet connectors (male connectors sold separately)
- Waterproof design ESC and splash resistant 30MM fan*
- Powerful 5.5 volts fixed, 8 amps Peak BEC
- LED error codes for common error conditions
- Smooth sensorless startups
- Convenient transmitter programming for nine common adjustable settings
Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (purchased separately), Field Link Card (sold separately), or the Castle Link iOS App and a B-Link Bluetooth Adapter. (sold separately)
Includes:
- Sidewinder 8 ESC
- User Guide and Quick Start Guide
- Castle decals
Spesifications:
- Input Voltage (V) min. – max.:7.2 – 25.2 V
- Water Protection: Waterproof* design allows for use in nearly any environment.
- Motor Type: Castle 15xx series motors, 1415-2400kv (Bullet connector change from 4mm to 6.5mm required)
- Nr of Li-xx Cells: 2S – 6S
- BEC Voltage (V): 5.5V fixed
- BEC Current (A): 8A peak
- Length (mm): 62.2 mm
- Width (mm): 56.0 mm
- Height (mm): 34.0 mm
- Weight (g): 100 g
- Connector (Motor): 6.5mm female bullets for motor connection.
- Max. Recommended Vehicle Weight: Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 5 kg, with batteries, ready-to-run.
- Required items:Battery Connector required, 6.5mm Castle Connectors are recommended.
- Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements)
Product Use Statements:
*Although Sidewinder 8 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
