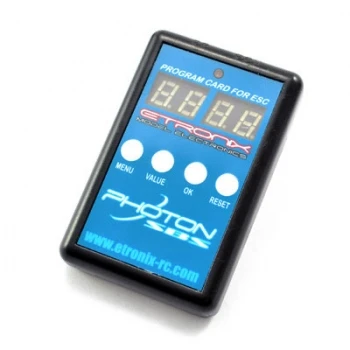

Etronix Photon SBS Led Programming Card (2.1W)

Programmable items and default settings (dafault settings are underlined)

1. Cut-off Voltage (2.6V, 2.8V, 3.0V 3.2V, 3.4V, No Cut-off)
2. Running Mode (Forward w/o reverse, Forward with pause then reverse, Forward/reverse)
3. Motor Timing (very low, low, normal, high, very high)
4. Initial Acceleration (low, medium, high & very high)
5. Throttle Percent Reverse (20%, 30%, 40%, 50%, 60%, 70% 80%, 90%, 100%)
6. Throttle Limit (0%, 20%, 30%, 40%, 50%, 60%, 70% 80%, 90%)
7. Percentage Braking (10%, 20%, 30%, 40%, 50%, 60%, 70% 80%, 90%, 100%)
8. Percentage Drag Brake (0%, 4%, 8%, 12%, 15%, 20%, 25%, 30%)
9. Motor Rotation (normal / reverse)
10. Neutral Range (2%, 3%, 4%, 5% 6%,10%)

Works with (Etronix Photon 2.1W ESC):

• FTX Bugsta (Brushless)
• FTX Vantage (Brushless)
