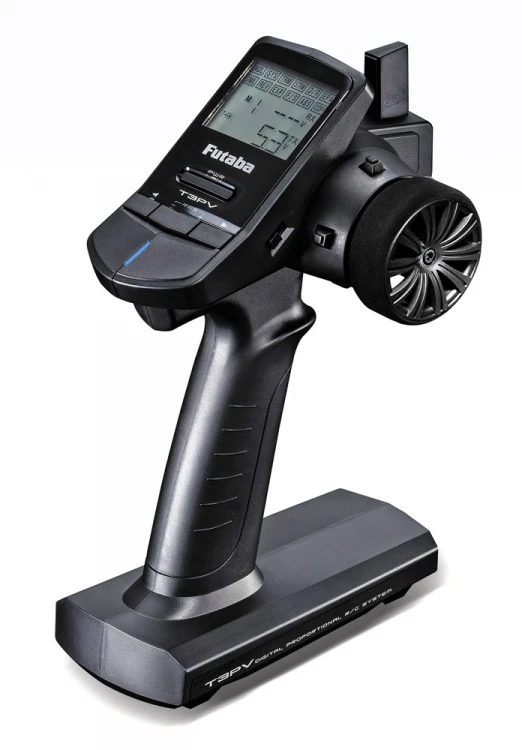

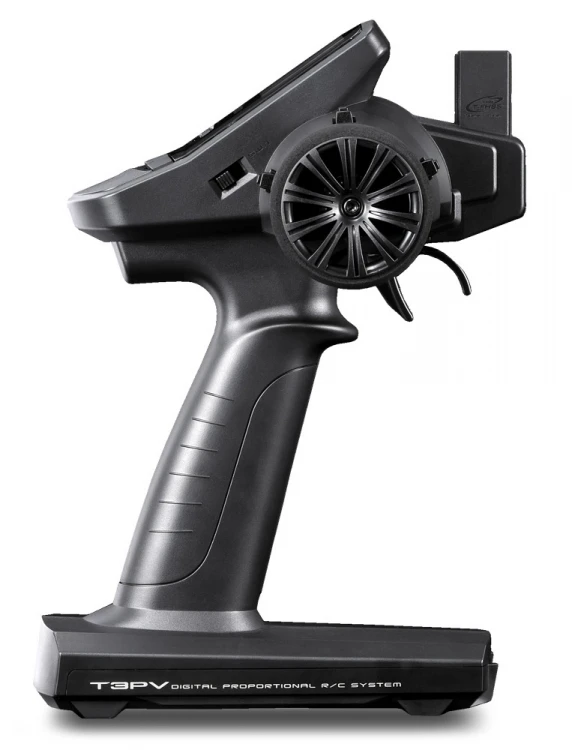

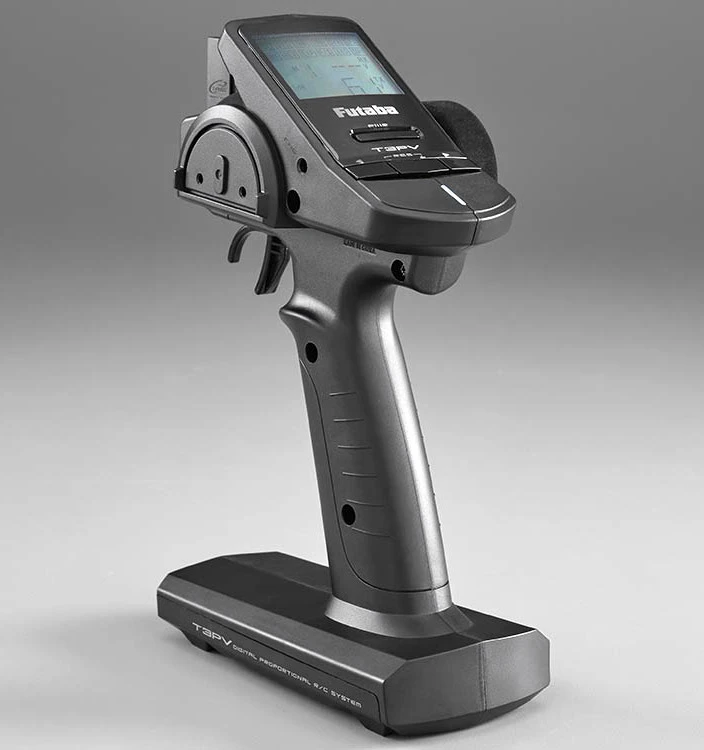

Futaba 3PV Radio with R203GF 2.4GHz S/T-FHSS

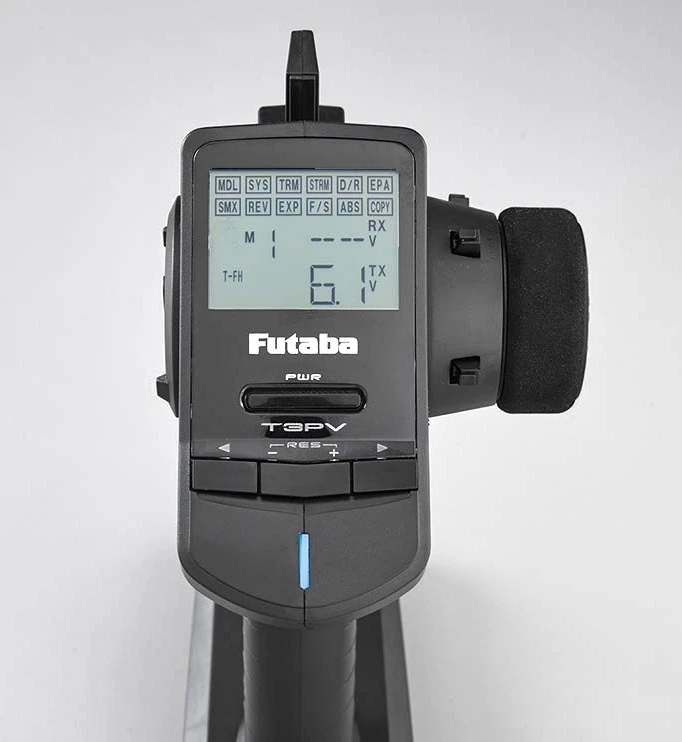

Hold the 3PV in your hand, and instantly feel how lightweight it is. Access the programming menu on the easy-to-read screen, and see how sophisticated it is. Experience the 3PV’s super-fast response rate, and realize that you’re in command of the system that can make a real difference on race day. You also get FHSS, S-FHSS and T-FHSS protocols, making it one of R/C’s most versatile surface system. The 3PV is available with a high-voltage R203GF receiver that’s an ideal match for brushless ESCs and digital servos.

T3PV Features:

• System: FHSS, S-FHSS & T-FHSS 2.4GHZ (T-FHSS / Telemetry only available with the optional R304SB receiver)
• 3+1 Channels (the 4:th channel can only be used when 4WS mixing (crawlers) or Brake mixing and with a 4-channel receiver)
• Channel 3 can be used on SW1 (two endpoints) or at DT3 where the D/R normally is at (stepped function)
• 10 Model Memory
• 4-Character Model Name
• Sub-Trim (CH1-4)
• Channel-4 Trim (only visible if 4WS or Brake Mixing is activated)
• Steering Dual Rates (D/R)
• Steering End Point Adjustement (EPA-CH1)
• Throttle End Point Adjustement (EPA-CH2)
• Channel-3 End Point Adjustement (EPA-CH3)
• Channel-4 End Point Adjustement (EPA-CH4) – this is only displayed when 4WS or Brake Mixing is activated
• 4-Wheel-Steering / Brake Mixing (SMX) (booth mixers can’t be used at the same time)
• Sero Reverse (CH1-4)
• Steering Exponential (EXP-CH1)
• Throttle Exponential (EXP-CH2)
• Throttle Fail-Safe (F/S)
• ABS Brakes (3- cycle speeds available)
• Model Data Copy
• Auto Power-Off after 10 minutes

Low Battery Alarm:

• 4x AA alkaline batteries – set LBA @ 4.2V
• 5 cell (6V) NiMH – set LBA @ 5.0V
• 2S (6.6V) LiFe – set LBA @ 5.8V

Available T-FHSS Telemetry Functions when using the R304SB receiver (not included):

• Receiver battery voltage (no sensor needed)
• External voltage (if this sensor is used the receiver battery voltage is not visible on the TX LCD) – SBS-01V
• No other telemetry sensors can be used

Suitable Receivers:

• R203GF S-FHSS (included)
• R304SB T-FHSS (optional) – Use only Futaba Digital & BLS servos

Optional TX Batteries:

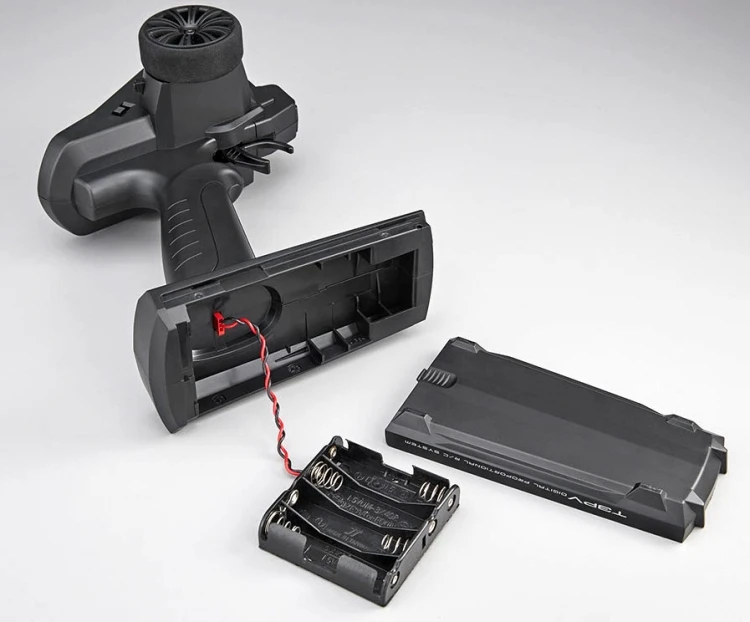

• 4x AA alkaline batteries (battery holder included)
• YT1800A (5 Cell NiMH)
• HT5F1800B / FPEBA0142 (5 Cell NiMH)
• FT2F1700B / FPEBA0140 (2S 6.6V LiFe)
• FT2F2100B / FPEBA0135 (2S 6.6V LiFe)

T3PV-2.4G Transmitter:

• FHSS/S-FHSS/T-FHSS* system
• Wheel type
• 3+1 channels (the 4th channel is used for mixing functions only)
• Transmitting frequency: 2.4GHz band
• Power requirement: Size AA Dry cell battery x 4 (6V) (or 5-cell NiMH / 2-cell LiFe)
• Current drain: 100mA or less

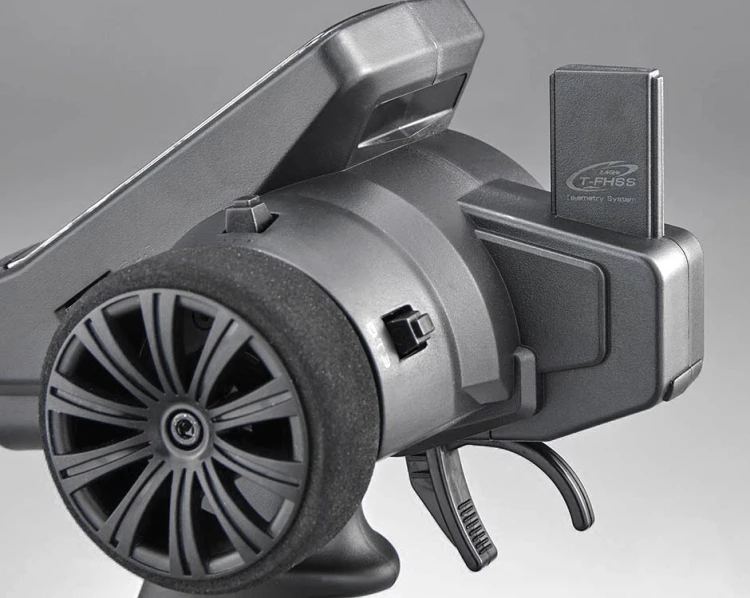

• Transmission antenna: 1/2λ di-pole (Built-in)

Receiver R203GF (included):

• 3 channels
• S-FHSS/FHSS auto detection system
• Power requirement: 4.8V ~7.4V battery (Dry cell battery cannot be used)
• Size: 39 x 26 x 10 mm (excluding a projection part)
• Weight: 8 g

Receiver R304SB/R314SB (optional):

• T-FHSS system
• 4 channels
• Power requirement: 4.8V ~7.4V battery (Dry cell battery cannot be used.)
• Size: 35.1 x 23.2 x 8.5 mm (excluding a projection part)
• Weight: 6.6 g
