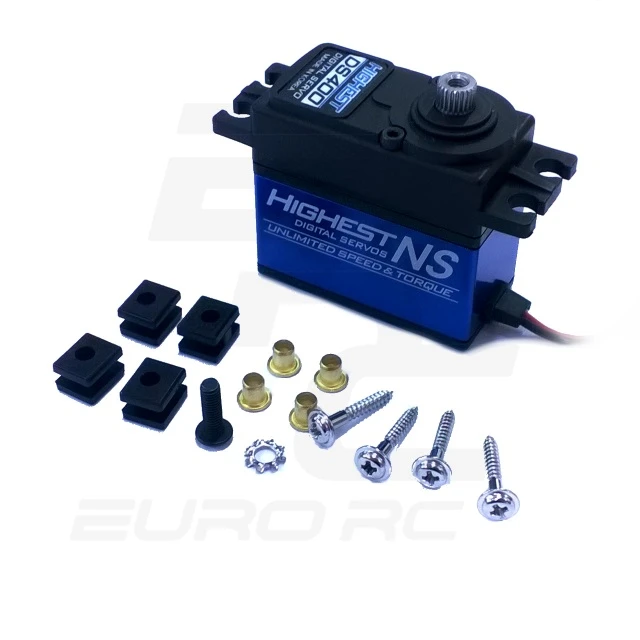

Highest DS400 Servo – 12.1 kg – 0.09s

Highest servos are built for racers in all levels keeping in mind that drivers are looking for reliable servo for various applications. Highest servos are designed from blank paper to match the racers needs. Used materials and machining is selected to be highest possible quality in every price point. This is only way to assure the best possible solution and highest possible quality of the servos. You will notice that servos have finest finishing and most silent operation and smoothness when it comes to steering. Doing so Highest have managed to create series of servos which have astonishing performance and quality which can be held as a measure as other servos.

Highest DS400 is the “basic” servo for 1:10 scale racing cars. You can use it as steering servo for Touring cars as 2wd and 4wd off-road buggies.

Aluminum Case(middle) + Plastic(upper, short middle, bottom)
Full Metal Gear
Operating Voltage : 4.8~6.0V
Operating Temperature Range : -10 to +60 Degree C
Operating Speed :
(4.8V) : 0.11sec
(6.0V) : 0.09sec

Stall Torque:
(4.8V) : 9,6kg-cm
(6.0V) : 12,1kg-cm

Dynamic Torque :
(4.8V) : 6.3kg-cm
(6.0V) : 7.2kg-cm

Motor Type: high efficient Cored dc motor
Size : 39.5*20.0*38.6 mm
Weight : 54 g

Servo Arm: 25T (F)

Note!! Servo arm NOT included
