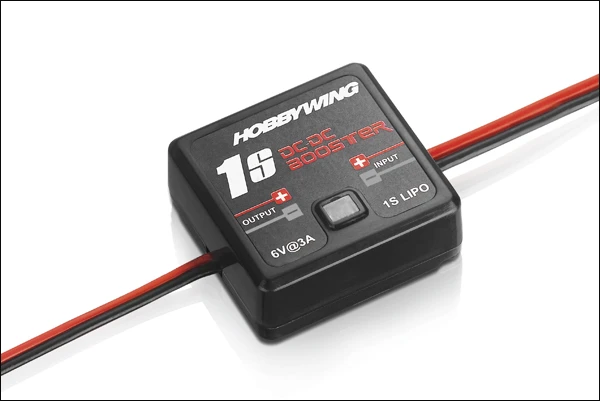

Hobbywing 1S DC-DC Booster
Introduction
1S DC-DC BOOSTER is a DC-DC power booster module which can draw power from the 1S Lipo battery then boosts it to the voltage (6V) suits the receiver & servo and provides the continuous output current up to 3Amp.
1S DC-DC BOOSTER is mainly applied in 1/12th scale RC vehicles.
The 1/12th scale car usually uses 1S Lipo battery, and BEC in ordinary speed controller is step-down. In that case, the BEC output voltage will be lower than 4.2V that cannot meet the power demand of the receiver & servo. Therefore, 1/12th scale car has to run with purpose-built 1S ESC with the built-in DC-DC booster or external receiver battery connected if the speed controller hasn’t the built-in DC-DC booster. However, things will be different after adopted this booster. Then the receiver batteries can be abandoned and users can be free from charging and maintaining the receiver batteries.
2 Specification
2.1 Input Voltage: 1S Lipo or 3-4 Cell NiMH
2.2 Output Voltage: 6V
2.3 Output Current: Continuous 3A, Burst 6A
2.4 Dimension: 28.0mm*26.8mm*11.8mm (L*W*H)
2.5 Weight: 10.2g
