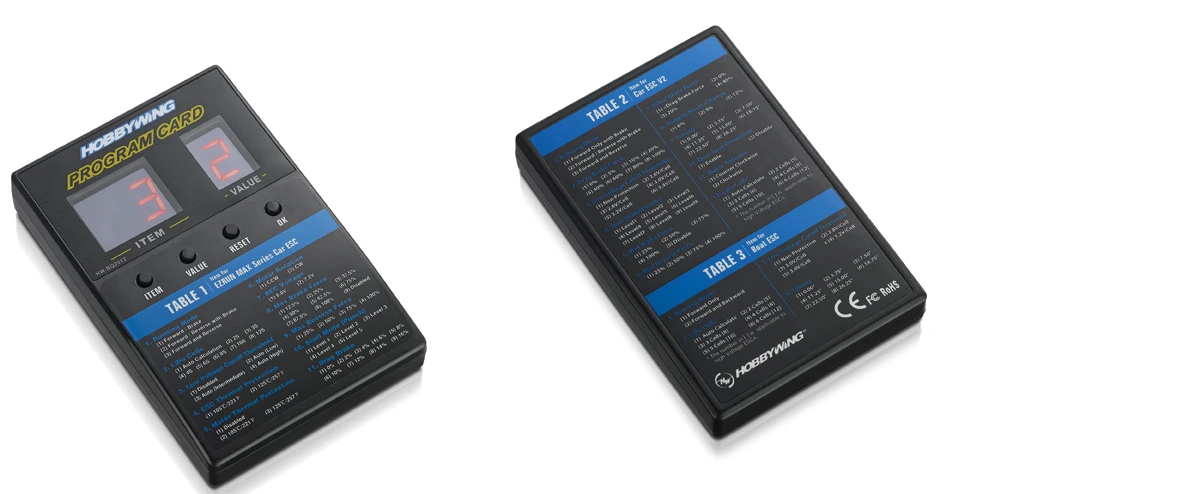

Hobbywing LED Program Card – General

Simple program card

This LED program box is for programming HobbyWing brushless ESCs. Its friendly interface makes ESC programming easy and quick.
It’s compact, portable and very applicable for field use.
It works with the following HobbyWing products:
1.Platinum V1/V2 series & FlyFun V5 series of brushless aircraft ESCs.
2.XeRun series up to v.2.1, EzRun series & QuicRun series of brushless car ESCs.
3.SeaKing series of brushless boat ESCs.

Part Number

30501003

Specifications

Size：88x58x14mm（LxWxH）
Weight：40g
Input Voltage: 4.8V—8.4V(a separate battery is needed for powering this program box when ESC has no built-in/external BEC)

Includes: alternative menu stickers for Flyfun V5 and Platinum V1/V2

Compatibility spec:

XERUN Series ESC (V2.0 & V2.1)
EZRUN Series ESC (V2.0)
EZRUN MAX Series ESC (V3)
QUICRUN Series ESC
Platinum V1/V2 series
FlyFun V5 series
Seaking

NOTE!  This card is not compatible with XR10 or XR8 series.

Manual HERE
