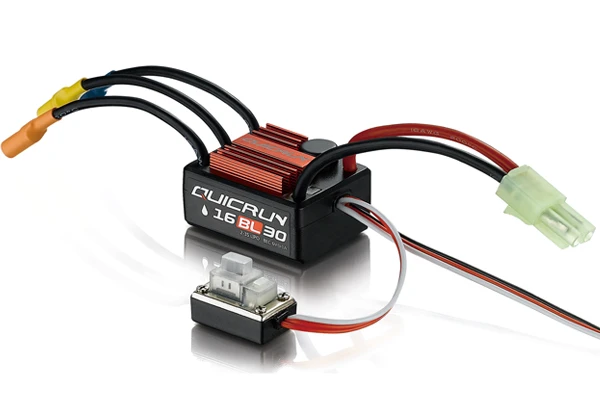

Hobbywing Quicrun 16BL30 Waterproof 30A Sensorles Esc

1 Features

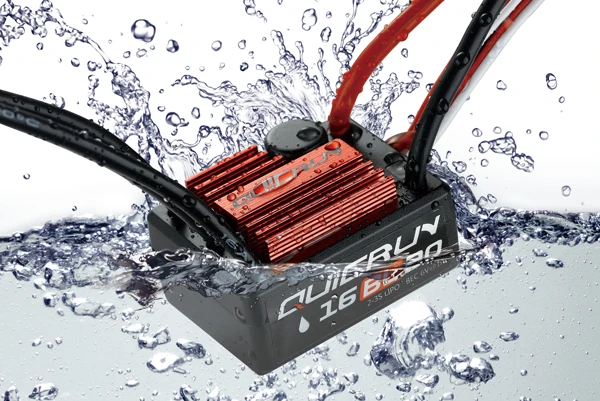

1.1 Water-proof and dust-proof for all-weather races.

(Note: please uninstall the cooling fan before using this ESC in water;

Clean and dry it soon after the use for avoiding the connectors get

rusty.)

1.2 Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.

1.3 9 steps of acceleration (/punch) adjustment from “soft” to “Very

aggressive” to fit for different kinds of models, tires and tracks.

1.4 Multiple protections: Low voltage cut-off protection / Over-heat

protection / Throttle signal loss protection / Motor lock-up protection.

1.5 One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.

1.6 Compatible with the optional device —- the portable Digital LED Program Card, especially convenient for outdoor use

Spec:

Cont./Peak Current/ Resistance: 30A/180A/0.002Ω

Motor Type Supported: Sensorless Brushless Motor

Car Applicable: 1:18 & 1:16 On-road/Off-road/Buggy/Monster

Motor Limit:

For 2S Lipo or 6 cells NiMH:

1. On-road: 2435-size or smaller motor with the KV<8000

2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000

For 3S Lipo or 9 cells NiMH:

1. On-road: 2435-size or smaller motor with the KV<5500

2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500

Not suitable for 4-pole motors

Battery:

4-9 Cells NiMH

2-3S Lipo

BEC Output: 6V/1A (Linear Mode)

Size/ Weight: 36(L)*28(W)*16(H) / 38g

External Program Port: Not Available

Working voltage of Fan: No cooling fan

Battery connector:  MiniTamiya

Motor Connectors: 3,5mm Female bullet

Download Manual HERE
