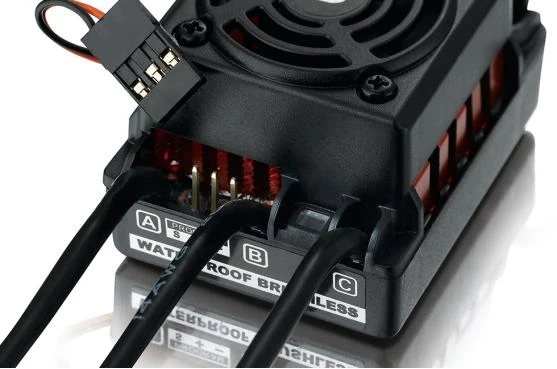

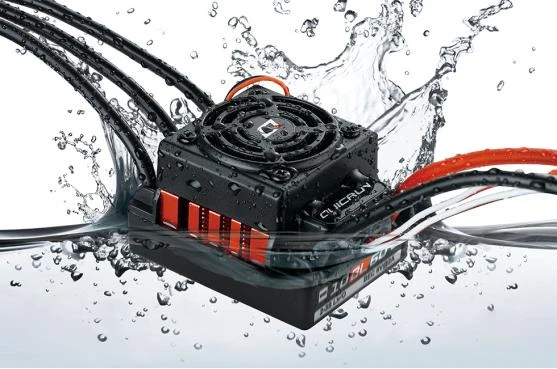

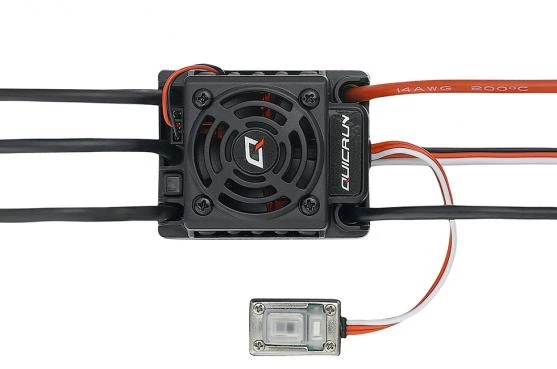

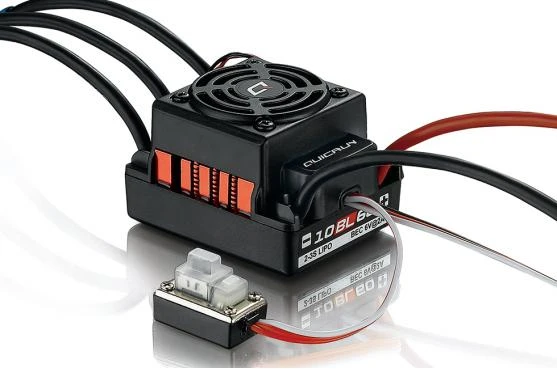

Hobbywing Quicrun Splash Proof 60A Brushless Esc
This is Hobbywing Quicrun waterproof brushless esc. New innovations in cooling and new lower structure makes this sensorless esc almost bulletproof
Key Features
- New cooling structure
- New lower construction
- 60A power handling
- Splash Proof
- Size: 38mm x 48mm x 32mm
- Motor Connectors: 4.0mm Female Bullet
- No battery connectors
Spec:
Cont./Peak Current/ Resistance: 60A/360A/0.001Ω
Motor Type Supported: Sensorless Brushless Motor
Car Applicable: 1:10 On-road/Off-road/Buggy/Monster
Motor Limit:
For 2S Lipo or 6 cells NiMH:
1. On-road: 3656-size or smaller motor with the KV<6000
2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
1. On-road: 3656-size or smaller motor with the KV<4000
2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<300
Battery: 4-9 Cells NiMH 2-3S Lipo
BEC Output: 6V/3A (Switch Mode)
Size/ Weight: 48.5(L)*38(W)*32(H) / 90g
External Program Port: Available
Working voltage of Fan: From BEC
Download the Manual HERE
