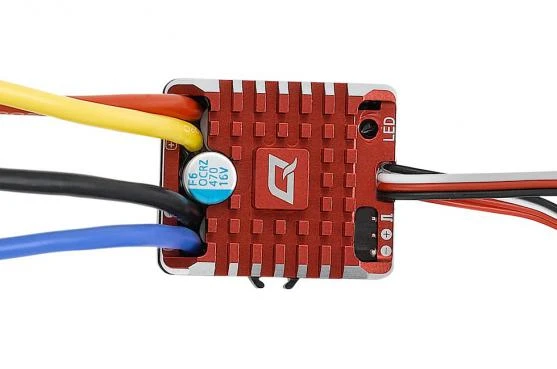

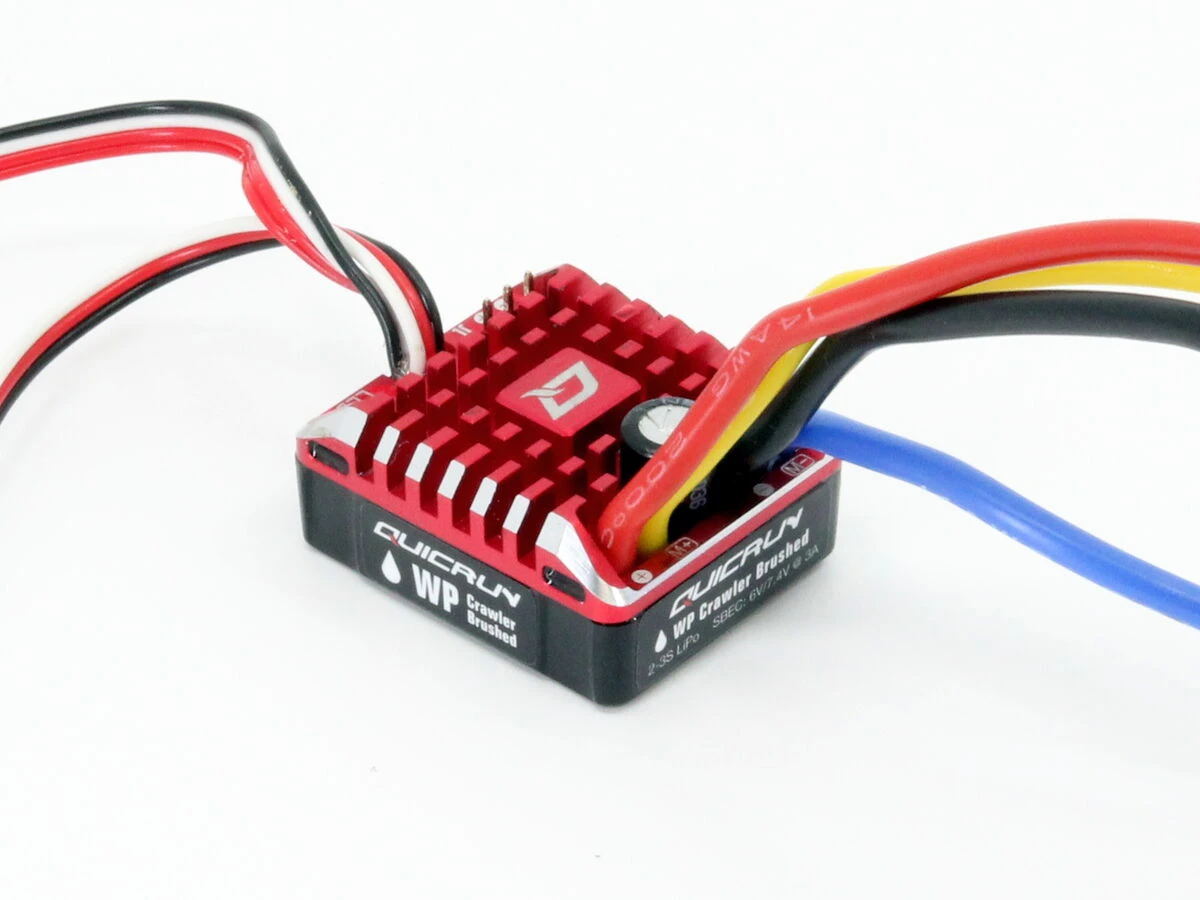

Hobbywing QuicRun WP Crawler Brushed 80A Esc
Original price was: $49.00.$29.40Current price is: $29.40.
- Hassle-Free Payments
- Free Shipping, No Compromise on Quality
- Your satisfaction is 100% guaranteed.
- Your questions, our prompt answers.
Specially Designed for Crawling
Special Design for 1/10th, 1/8th Crawlers
Thereliable hardware combined with powerful software (features an array ofprogrammable parameters like start force, drag brake rate, and etc.) creates an ideal power solution to 1/10th, 1/8th rock crawlers.
Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology
Theadjustable PWM frequency combined with advanced DEO/freewheelingtechnology guarantees users great throttle linearity and driving feel.

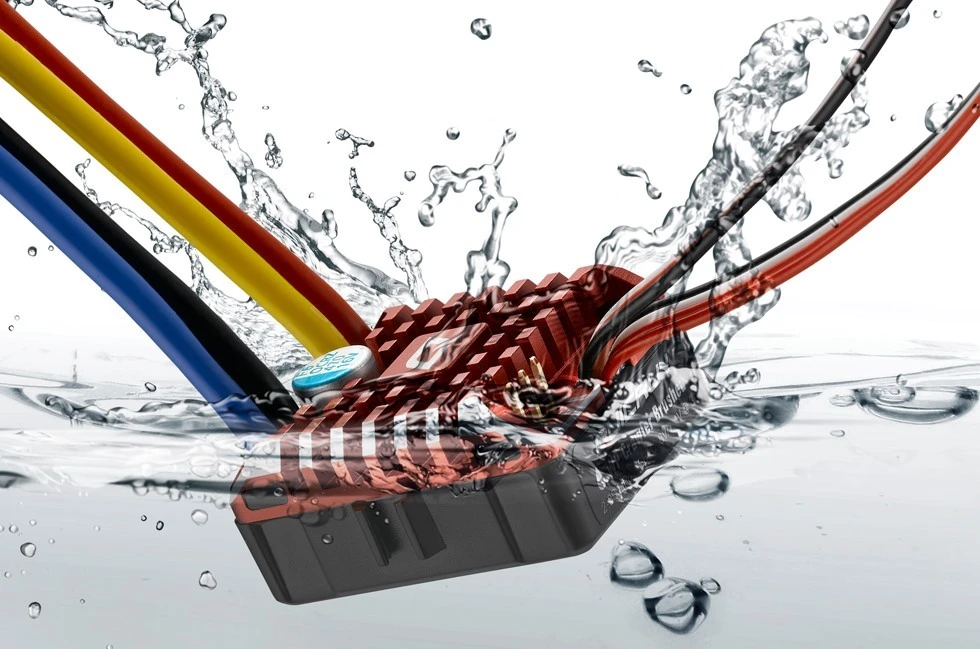

Applicable to All Weather Conditions
Thewaterproof and dust-proof design allows the WP-Crawler-Brushed to beused in all weather conditions without any issue of damage caused to theESC from water or debris.
Excellent Braking Performance
Hobbywing’sinnovative, fine-tunable drag brake rate and adjustable drag brake andbrake force greatly improve the brag brake and allow users to have theexcellent braking performance.

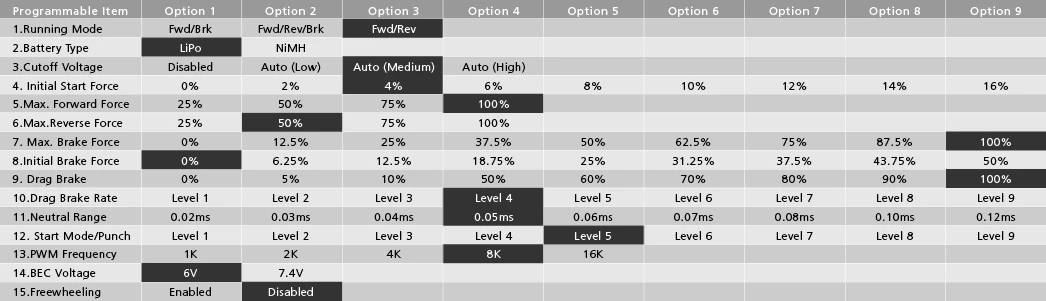

15 Programmable Parameters
The WP-Crawler-Brushed, which features 15 programmable parameter items, is applicable to various vehicles and tracks.
Separate Programming/Fan Port
Theseparate PRG/FAN port on the ESC can power an external fan to maximizecooling performance or connect the ESC to a LED program box for ESCprogramming.

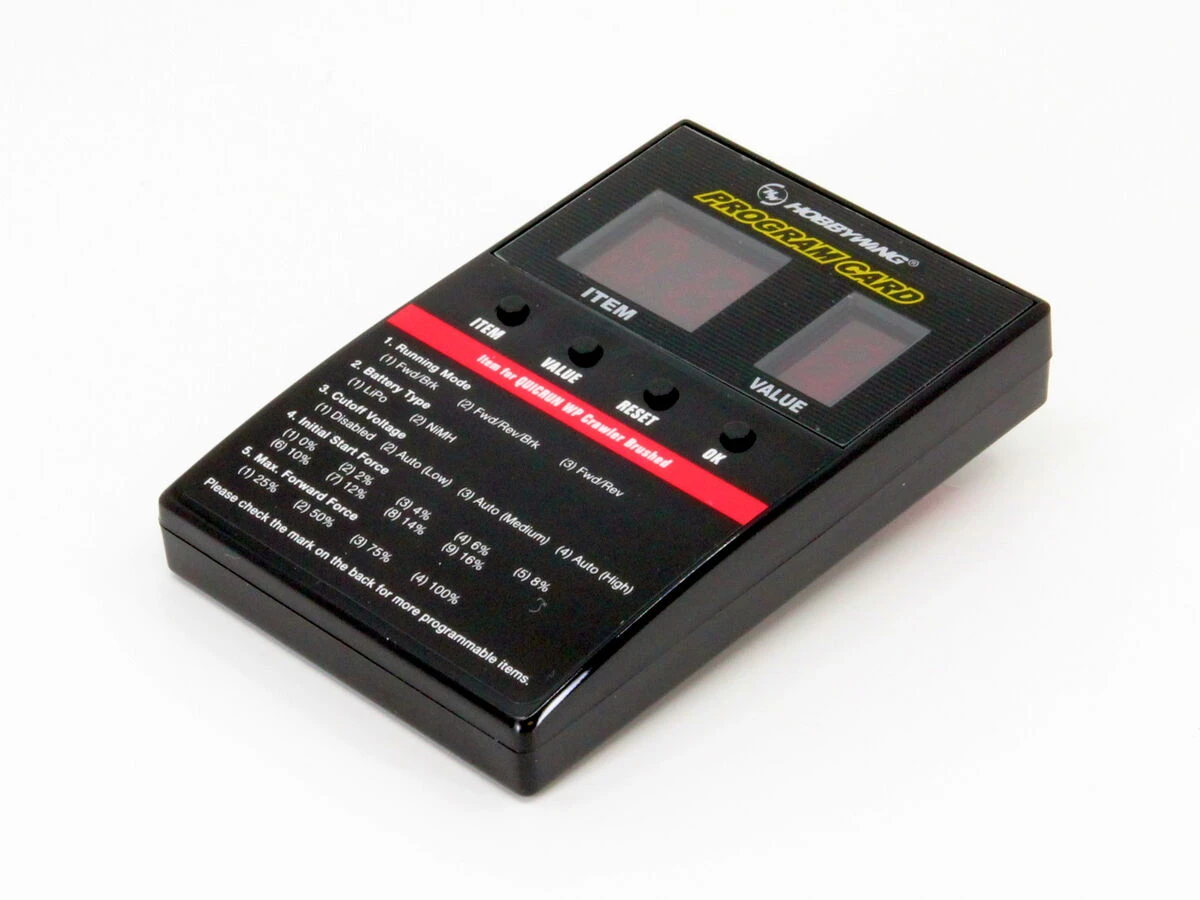

A LED Program Box is Included
A standard, dedicated LED program box (included in the box) allows users to program the WP-Crawler-Brushed easily.
Quick spec:
- Waterproof
- Cont./Peak Current : 80A/400A
- Input Voltage: 2-3S Lipo/5-9 Cell NiMH
- BEC Output: Switch Mode: 6V/[email protected]
- Size: 36.2×31.6×17.0mm
- Weight: 58.5g (w/Wires)
- KV Rating/T Count:
Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPM<[email protected]
Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<[email protected]

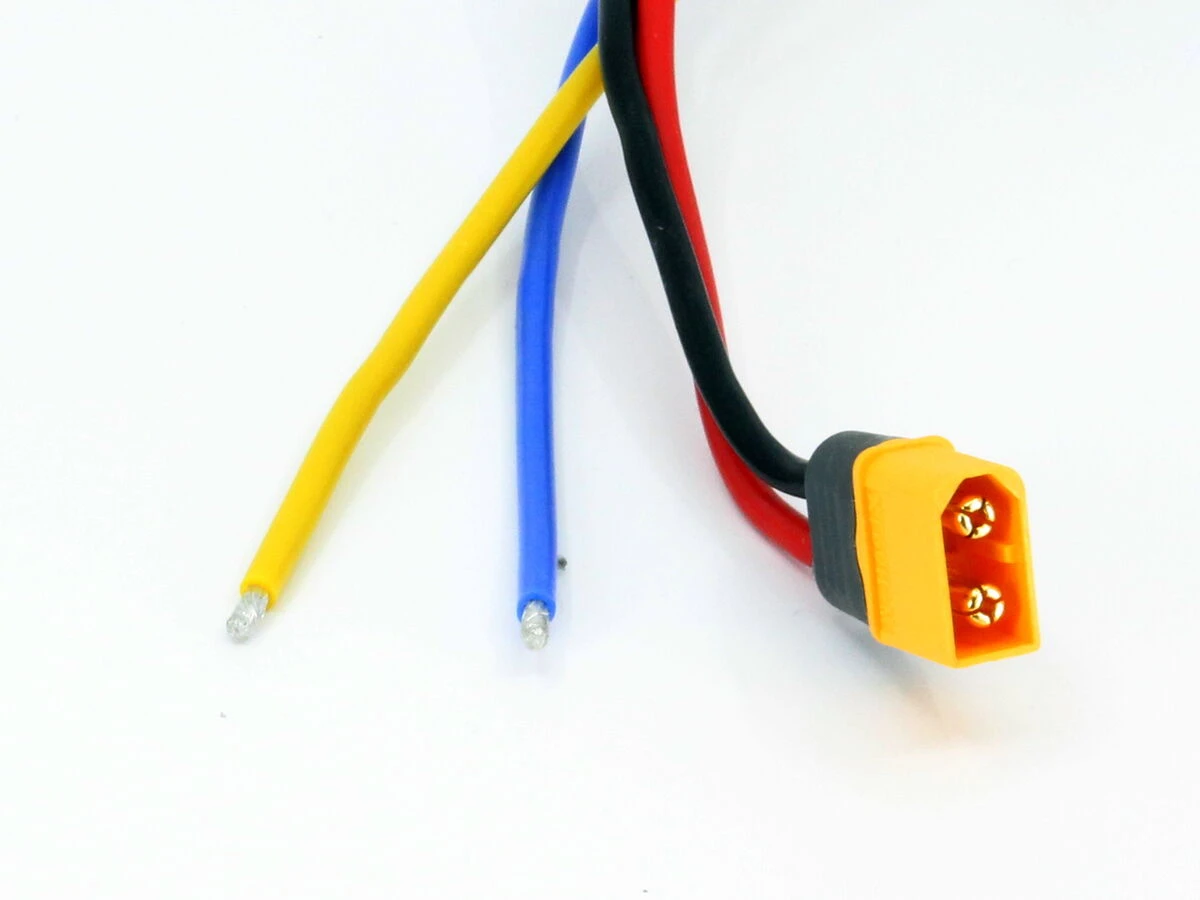

Input Wires Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Output Wires Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
Input Connectors XT60
Output Connectors No
(Note: All the wire length above is the original length not the length you see from the outside.)
Read The full spec HERE
Download Manual HERE
