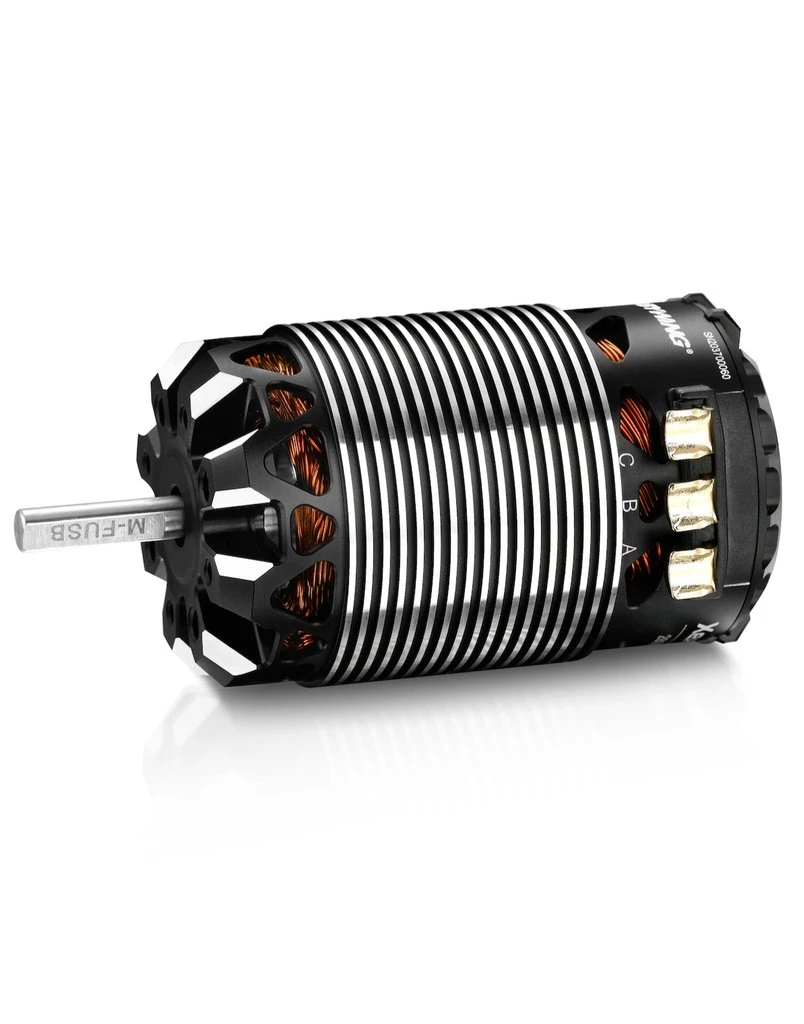

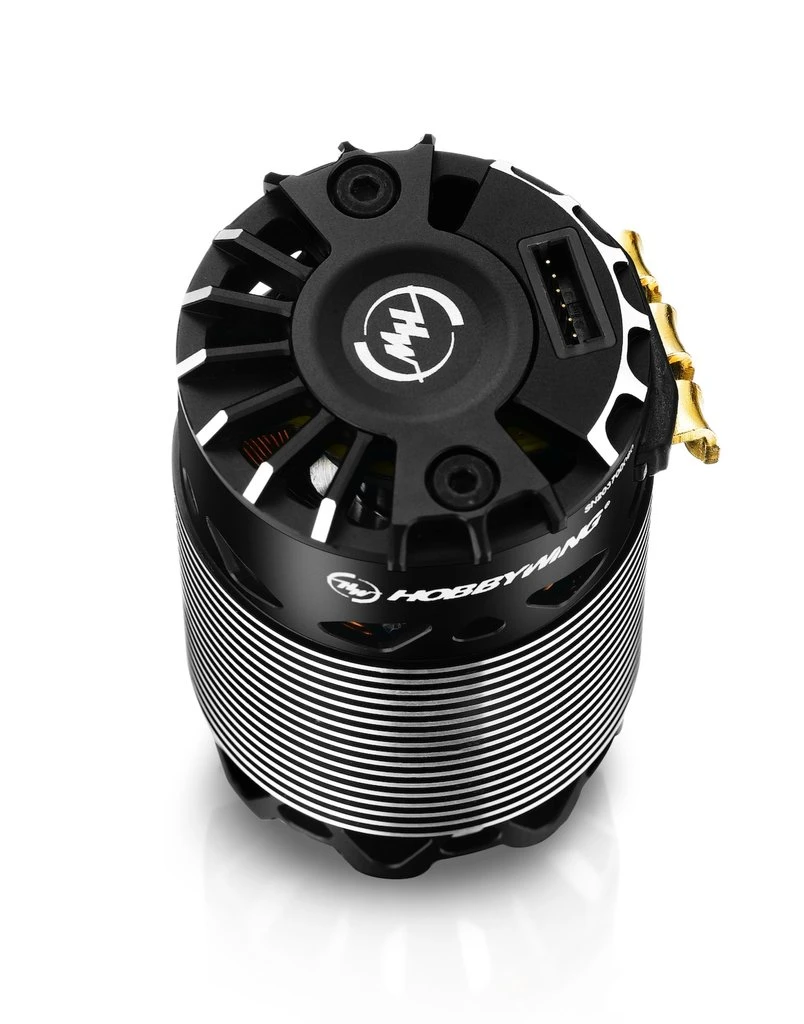

Hobbywing Xerun 1/8 Competition Motor – 4268 SD G3 for 1/8 On-road: 2000kv

1/8th brushless power system with the implementation of a pure signal sensor mode circuit.

Built-in intelligent integrated circuit is used so the sensor unitcan easily be identified by the ESC when pairing with Hobbywing’s XeRunXR8 series of ESC’s the motor will operate in “Pure Sensored” mode atall times, providing a better performance and a smoother throttleresponse.

1/8th power system & Turbo Timing technology

can be used when this motor is paired with Hobbywing’s XERUN XR8series of ESC’s the Motor can use the Turbo Timing technology which wasdesigned for the XR10 Pro series of Esc’s used in 1/10th On and Off roadCompetion.The motor will increase to maximum power output instantly.Themaximum speed will increased by as much as 50% more than the output ofthe previous G2 series motors keeping you way ahead of the competition.

Please Note: When tue G3 Series motors are paired with XR8 Pro G2 ESC the turbo feature can be set to the maximum of 48º.

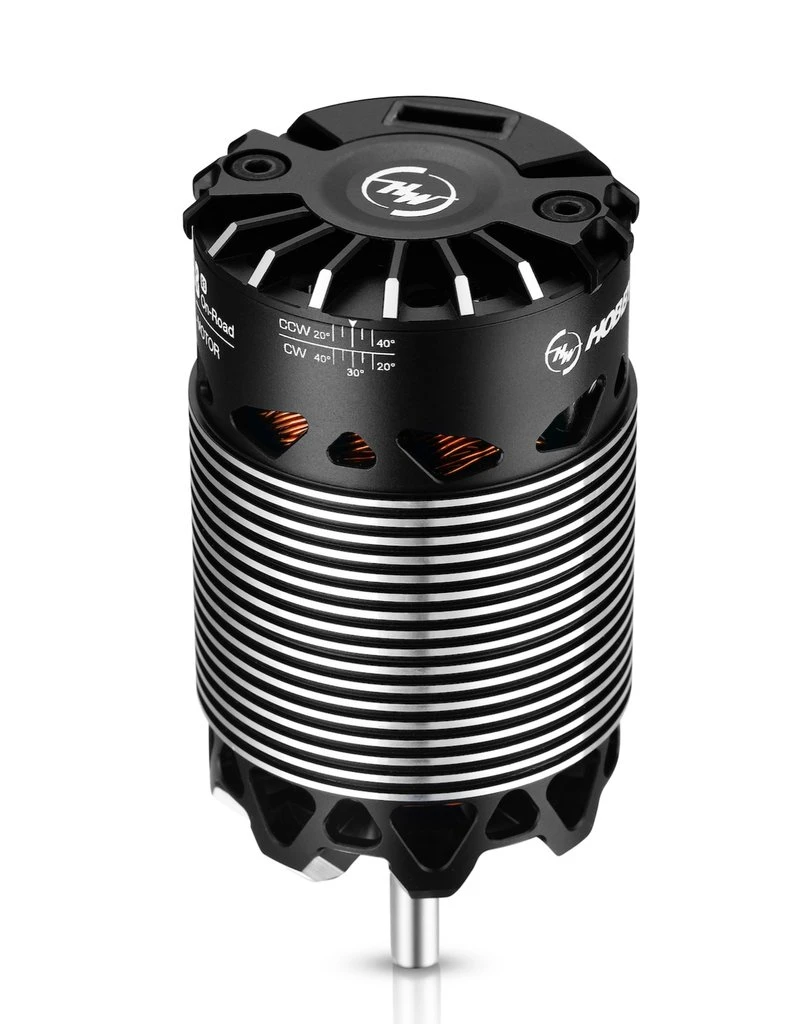

The mechanical turbo timing of motor can be accurately adjusted in both directions (CW / CCW)

The mechanical turbo timing can be adjusted between 20-40°. It isconvenient for driver to calibrate accurately output power of motor andmeet power requirements of various application.

The G3 Series is Fail Safe and reliable using Hobbywing’s new motor Hall sensor technology

The motor sensor system adopts patented technology of “error-free”Hall sensor technology, with an independent high-speed andhigh-precision encoder of which will always output a pure and accuraterotor position signal, which effectively will isolate any externalinterference which are known to cause errors of the sensor signal.Thisaccurate sensor system will allow the motor to function at its peakperformance in a very stable sensor state.

Features:

• Suitable for 1/8th Touring Car and other On-road setups
• Turbo Timing Technology
• Full Sensored mode (when paired with XR8 SCT ESC or XR8 plus ESC)
• Adjustable Timing (Bi-Directional) 20-40 degrees
• Advanced Hall Sensor System
• Low Cogging
• 4-pole-8-magnet “Staggered Pole” rotor – HOBBYWING Patented design
• Guarantees users the effective heat dissipation and dust prevention
• Theuse of double insulated windings (240°C R-rated), NMB bearings fromJapan, and the high-intensity adhesive (340°C) guarantees users theoutstanding performance and super durability.
• Front bearing: 16x5x5 mm
• Rear bearing: 11x5x5 mm
• Size. O.Dia / Length (mm)42/68
• Axle diam: 5.00 mm
• Axle length 18.5mm

Best option as Esc for these motors is Xerun XR8 Pro

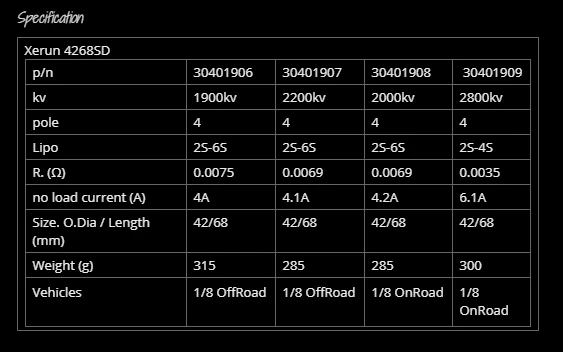

Specs:

• 2000kv / 4 Pole / Lipo 2-6S / R. (Ω) 0.0069 / no load current (A)4.2A / Weight 285(g) / Vehicles1/8 OnRoad

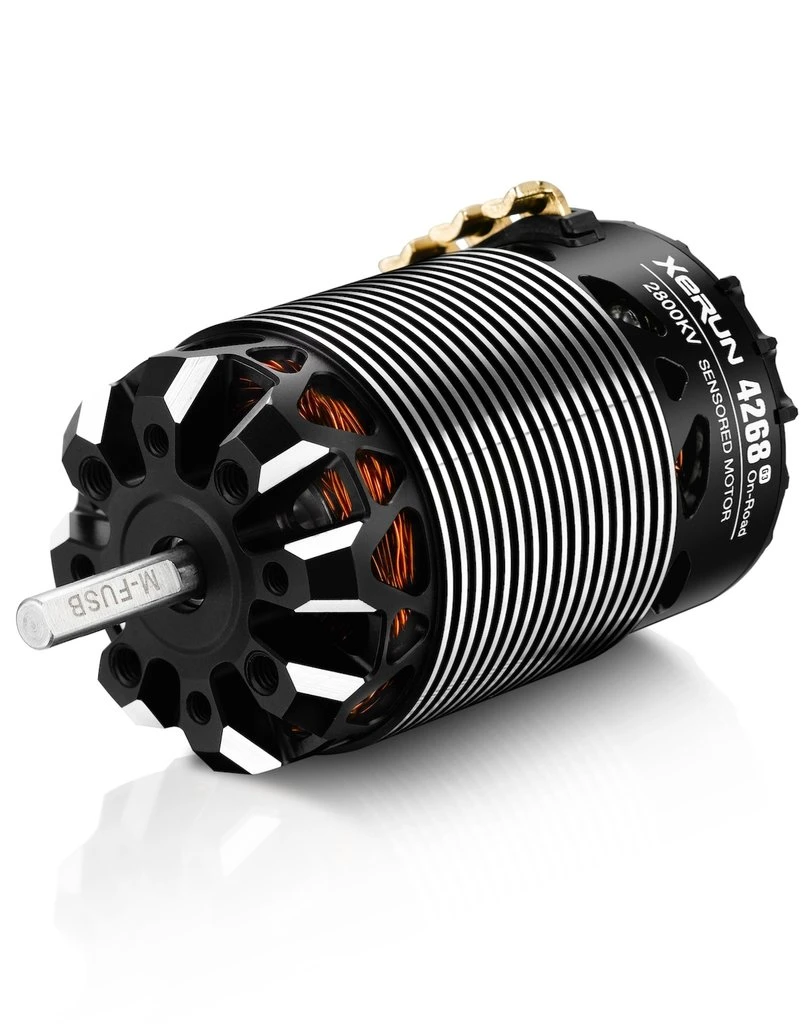

• 2800kv / 4 Pole / Lipo 2-4S / R. (Ω) 0.0035 / no load current (A) 6.1A / Weight 300(g) / Vehicles1/8 OnRoad
