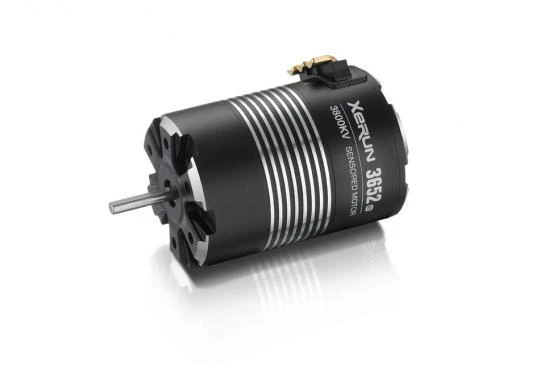

Hobbywing XeRun 3652SD G2 sensored motor – SCT 4-Pole – 5.0mm Axle: Hobbywing XeRun 3652 SD G2 – 3100KV

Full Sensored Mode

The first 4-Pole motor with a built-in chip hwich helps ESC identify it’s a Hobbywing motor (only when pairing with the Xerun XR8 series ESCs) and the XR8 ESC create a power system which is able to work in the “sensored” mode (at all times) and provide users with the better performance and smoother control.

Note! Motors are fully compatible with other brand ESCs also but unable to work in the “sensored” mode at all times.

Turbo Timing Technology

The Turbo Timing which is widely used (by 2-pole motors) in 1:10 scale on-road racing can be enabled to unleash the utmost power of the motor when pairing with the Xerun XR8 series escs.

Bi-Directional adjustable Timing

The mechanical timing which is adjustable from 20 deg to 40 deg (30 deg default) meets different power demands of various applications.

Note! Bi-direction means CW-CCW

Advanced Hall Sensing System

The Hobbywing patended “error-free” Hall sensing system adopted by the motor guarantees users the steady operation in the “sensored” mode. A separate high-speed high precision encoder always outputs the clean signals (indicate the position of the rotor) and protects the Hall sensing system from other signal interference.

Low Cogging Torque

The Hobbywing patented 4-pole-8-Magnet “staggered pole” rotor with the extremely low cogging effect and torque pulsation greatly improves the driving feel around corners.

Quality Materials & Excellent Design

The use of double insulated winding (200 C-deg  R-leveled) Japanese NMB bearings super thin silicon steel sheet and the high-intensity adhesive (300c deg) guarantees users the outstanding performance and great durability. With the strength of the motor is guaranteed the wheel hub design adopted by front&rear end bels effectively reduces the motor weight.

Turbine Design

The Turbine design adopted by the rotor actively accelerates internal air circulation, reduces heat and keeps the motor temperature stay at a low level.

Overal spec:

Type:  Xerun 3652 SD Competition motor
KV ratings: 3100kv, 3800kv, 4300kv, 5100kv, 6100kv
Dimensions:
Φ=36mm
L=52.5mm
Axle dimensions:
Φ=5.0mm
L=18mm(0.591in)

Read the full spec here
