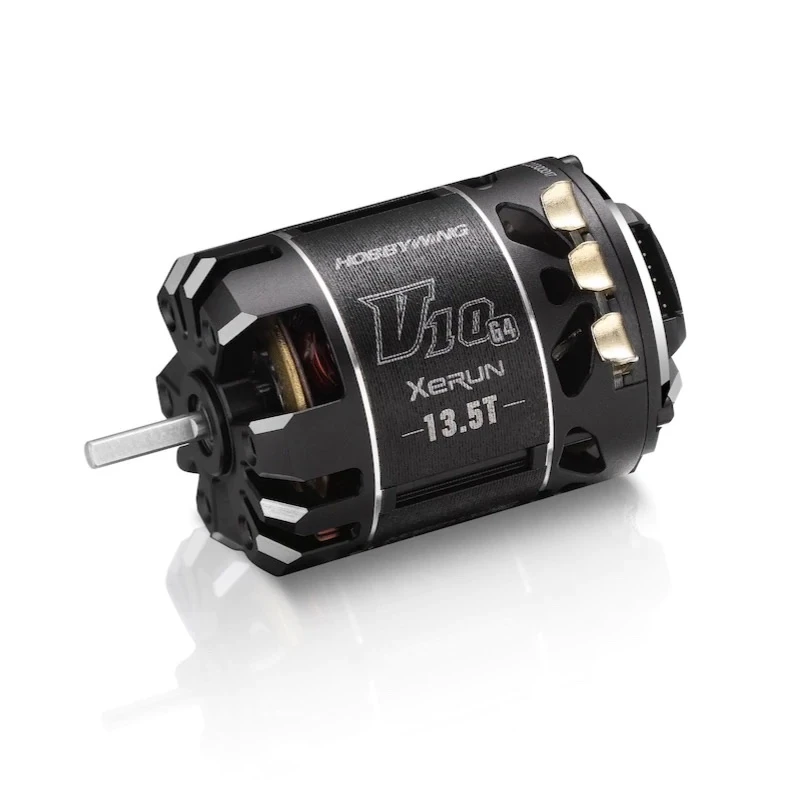

Hobbywing XeRun V10 G4 Competition Stock Sensored Brushless Motor: 13.5T

V10 G4-Spec Class (13.5T-21.5T)

• Excellent performance, specially designed for racing; Compared with the V10 G3R motor, the KV value of the G4 motor is increased by 9.8%, the maximum output power is increased by 5%, and the internal resistance is reduced by 4%.
• The innovative outer diameter structure of the fully exposed stator core maximizes the heat dissipation area and increases the direct heat dissipation area by 25.6% compared with G3R. In addition, the rear end of the motor is a big opening structure to further improve the heat dissipation effect.
• Dual sensor interface design to meet various wiring/layout requirements.
• The special copper bar is customized and the spacing of the copper bar is widened, which greatly facilitates the operation of soldering wire.
• The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
• The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.
• The use of a high-performance stator core, heat(200°C)-resistant wire, heat(180°C)-resistant rotor with strong structure, world-class high precision, and high strength bearings, and copper solder tabs with super-current
• It’s compliant with IFMAR, ROAR, EFRA, BRCA, JMRCA rules, and certificated by RoHS, CE, FCC and etc.

Specifications:

• KV Rating: 2500-3950KV
• LiPo Cells: 2-3S
• No-load Current(A): 4.5A
• O.D.(mm): 35.8
• Length (mm): 51.4
• Shaft Diameter (mm): 3.175
• Weight (g): 149g
• Front Bearing: D9*D4*t4
• Rear Bearing: D8*D3*t4
• Timing: 30-60 Degrees(Adjustable)
