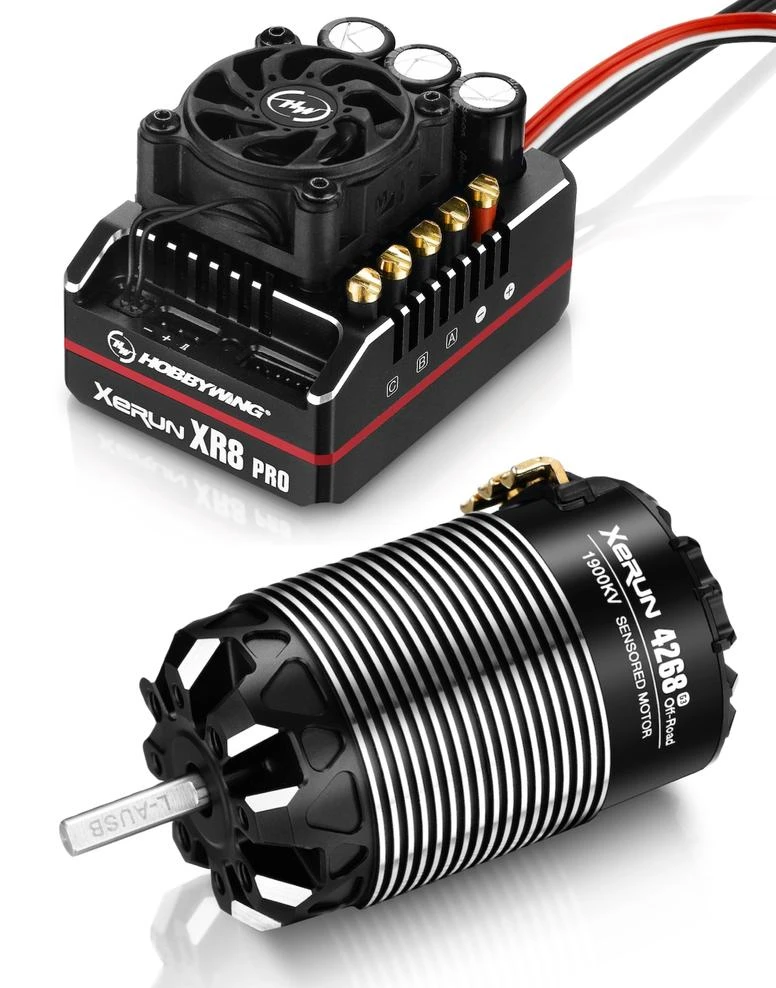

Hobbywing – Xerun XR8 Pro COMBO: 1900kV – Off Road

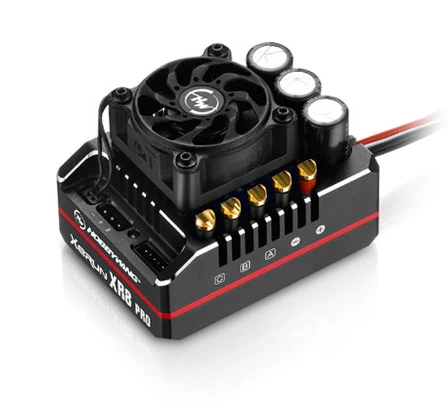

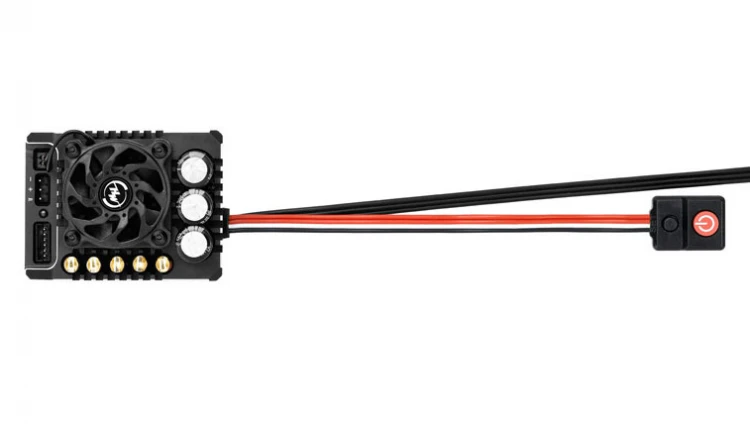

XR8 PLUS featured by the following elements:

• Built-in 5 common profiles, suitable for all 1/8 Racing, selectand use instantly. (e.g. Zero timing-Blinky mode, 1/8 Off-Road Racing,1/8 On-Road Racing, 1/8 GT Racing, 1/8 Sport mode.
• 29 built-in adjustable parameters to set various power requirements.
• The parameters can be imported and exported, which is convenient for drivers to communicate with and learn from each other.
• Supportthe firmware upgrade of the ESC (The multi-function LCD programmingbox or OTA Programmer is needed to purchase). You can enjoy the latestfunctions.
• Support 48 degrees Boost and Turbo timing.
• When matching with XERUN 1/8 motor (G3 4268/4274) motor, the Max. Speed can be promoted by 50%, easily win your rival.
• Multiple function: Low voltage protection, thermal protection of the ESC, motor and capacitor.
• Built-inswitch mode BEC with a maximum output of 15A and voltage adjustablefrom 6V to 8.4V (step: 0.1V) for usage with servos & other devicesrequire different voltages.
• The built-in reverse connectionprotection circuit of the ESC avoid the damage to the ESC due to reverseconnection.The record function of off-line data can read the Max.
• Temperature and RPM of the ESC and motor by HW Link (OTA Programmer is needed to purchase), which is convenient for driver to analyze the running of the power system.

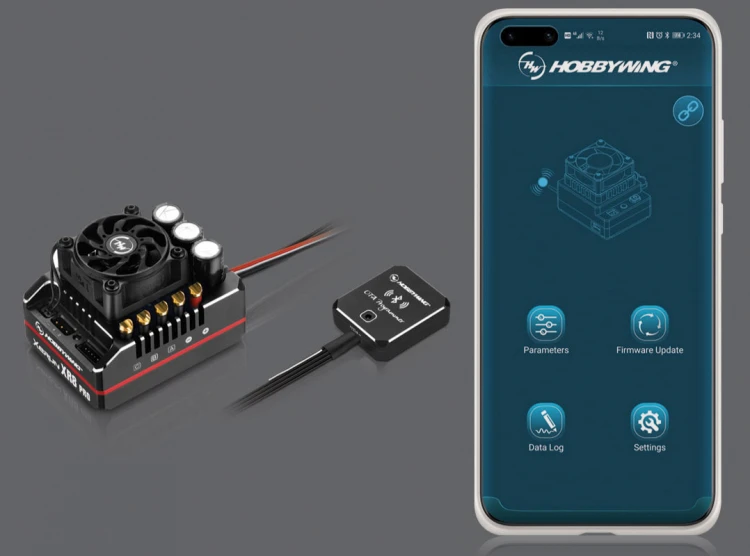

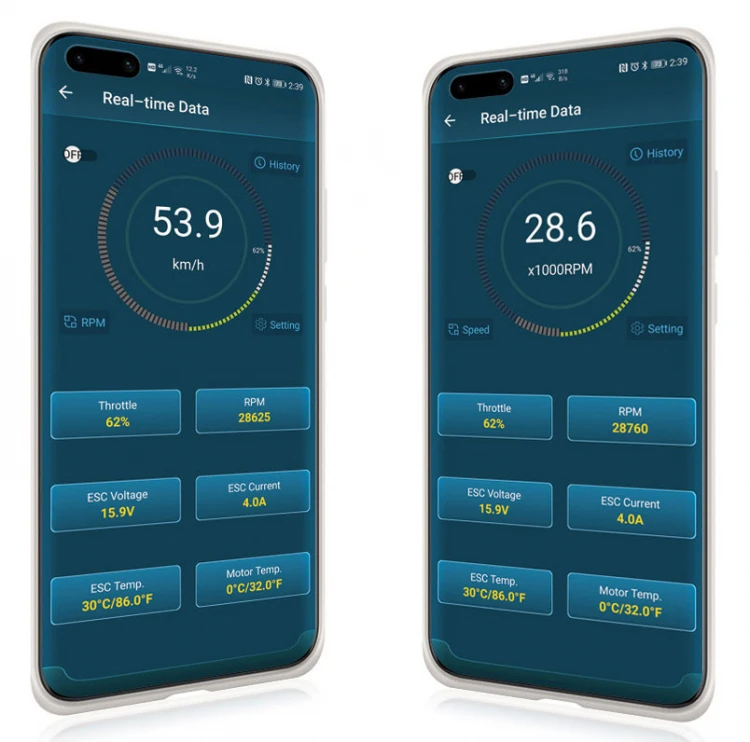

• Therecord function of real-time data:Open this function by connecting theESC with HW Link (OTA Programmer is needed to purchase) and mobile Appcan check throttle quantity, Voltage, Current, Temperature, RPM andother data in real time, and obtain the running status of the ESC andmotor.

*The full-sensored running mode can only be realized when pairingthis ESC with the 1/8th G3 sensored brushless motor or newer version

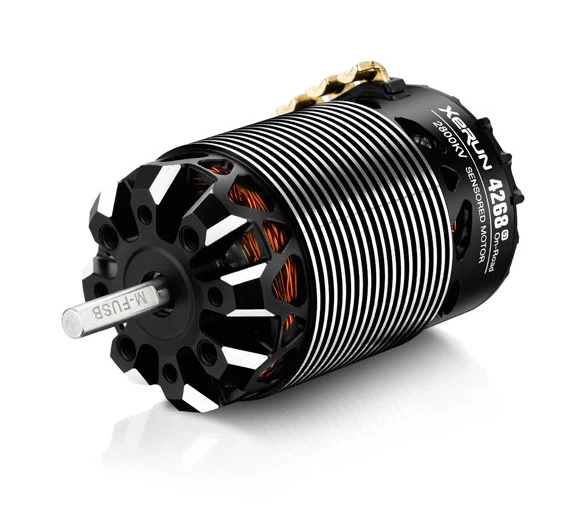

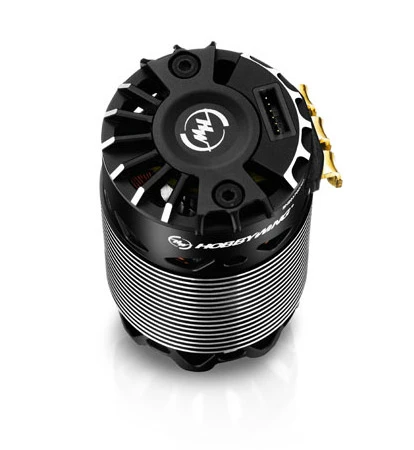

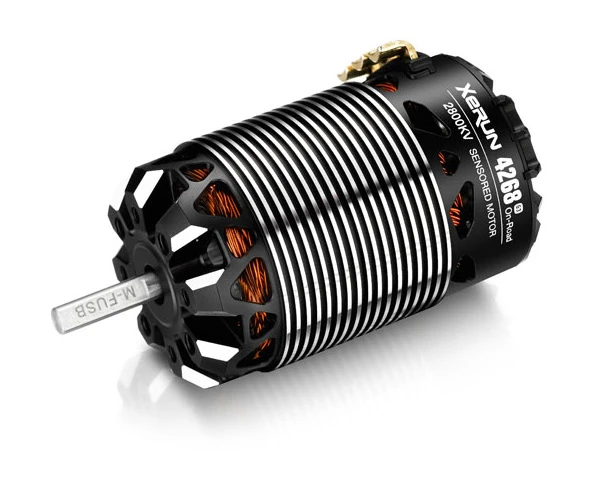

Xerun 4268 G3 Features

• Suitable for 1/8th SCT, Buggy and Touring Car
• Turbo Timing Technology
• Full Sensored mode (when paired with XR8 SCT ESC or XR8 plus ESC)
• Adjustable Timing (Bi-Directional) 20-40 degrees

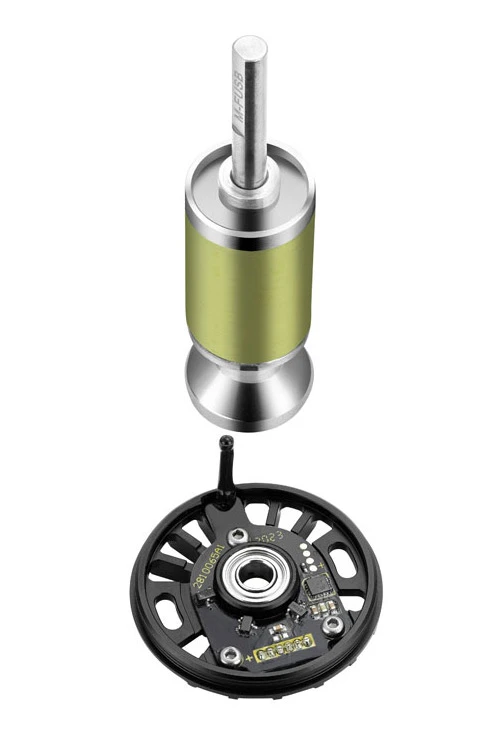

• Advanced Hall Sensor System
• Low Cogging

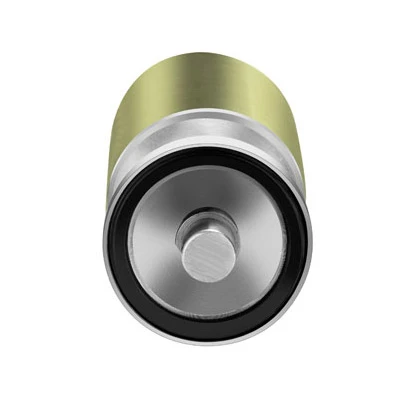

• 4-pole-8-magnet “Staggered Pole” rotor – HOBBYWING Patented design
• Guarantees users the effective heat dissipation and dust prevention
• Theuse of double insulated windings (240°C R-rated), NMB bearings fromJapan, and the high-intensity adhesive (340°C) guarantees users theoutstanding performance and super durability.
• Size. O.Dia / Length (mm)42/68

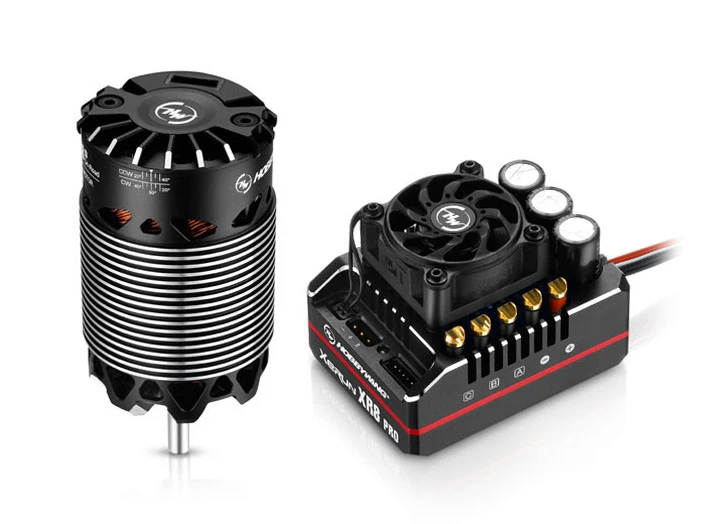

Includes:

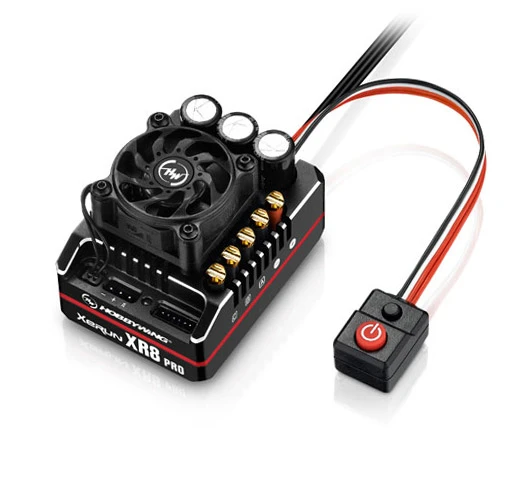

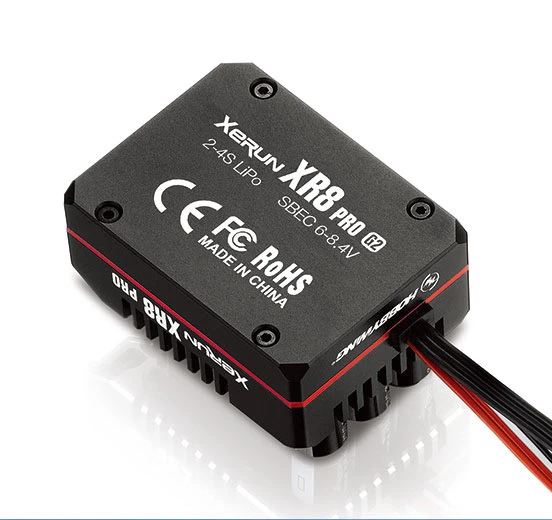

• 1x XR8 PRO ESC  (MAX 4S Lipo)
• 1x Xerun 1/8th G3 brushless motor –  On-Road   & Off-Road

Note that Motor variations are different for OFF-Road and ON-Road applications.

Specs:

• 1900kv / 4 Pole / Lipo 2-6S / R. (Ω)0.0075 / no load current (A)4A / Weight 315(g) / Vehicles1/8 OffRoad
• 2200kv / 4 Pole / Lipo 2-6S / R. (Ω) 0.0069 / no load current (A)4.1A / Weight 285(g) / Vehicles1/8 OffRoad
• 2000kv / 4 Pole / Lipo 2-6S / R. (Ω) 0.0069 / no load current (A)4.2A / Weight 285(g) / Vehicles1/8 OnRoad
• 2800kv / 4 Pole / Lipo 2-4S / R. (Ω) 0.0035 / no load current (A) 6.1A / Weight 300(g) / Vehicles1/8 OnRoad
