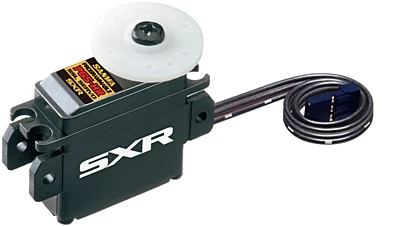

Sanwa PGS-HR SXR – 0.10s – 5.8kg Coreless Mini Servo

Spec:

Voltage3.7 – 6.0 V

Speed0.10 sec/60° (6.0V); 0.16 sec/60° (3.7V)

Torque3.8 kg • cm (6.0V); 5.8 kg • cm (3.7V)

Dimensions27.0x12.1×30.5mm

Weight24g

Features:

●FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
●SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
●PGS SETTING GEAR-COMPATIBLE
●Specialized for 1/12 models
●LiPo (1 & 2cell) Battery Support
●Digital Servo
●Coreless Motor
●Full metal gear

●Programmable Servo to be compatible with SSL & Telemetry at Launch

●Setting Adjustment by wireless from Radio

●Setting Adjustment to connect Servo with Setting Gear

●Regarding Temperature, Current, Voltage and Volume Position on Servo inside,

Telemetry-transmission can be passed to Radio.

# Initial Setting on Setting Gear is necessary.

★Setting Items

●SSL-CH (SSL Channel Setting) ●STRETC (Stretcher Adjustment) ●BOOST (BOOST Adjustment)

●D-Band (Dead Band Adjustment) ●MV-MID (Middle Torque Adjustment)

●MV-END (Later Torque Adjustment) ●BREAK (Break Adjustment)

◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)

◎MAX-PW (MAX Duty Adjustment)

※ Setting Gear is necessary for ◎setting.

●PGS-Servo Explanation
