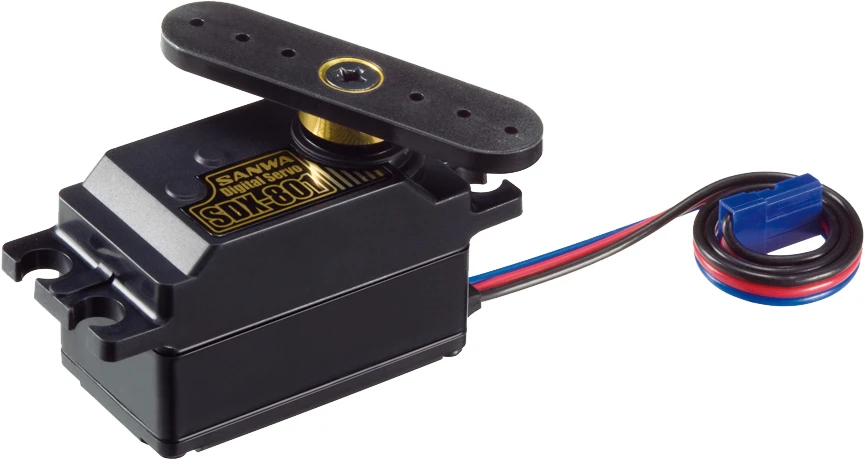

Sanwa SDX-801 Digital Low-Profile Servo 6,4kg

The Sanwa SDX-801 sets new standards in R/C car servos. The SDX-801 is so small it can be placed in any R/C car chassis without any problems and at the same time lower the cars overall weight and center of gravity. Due to the small weight of only 50g the SDX-801 is also perfect for today’s touring cars where left/right chassis balance is a huge problem due to racing with LiPos or 5-cell NiMH batteries which creates overweight on the electrical side of the chassis.

Used by LRP factory driver Ronald Völker to 2nd place and Vice-World Champion title at the 2008 IFMAR 1/10 Electric World Championship and 1st place at the 2009 German Indoor Championship.

Features:

• Low-profile
• Coreless motor
• Metal gear
• Double bearing

Specifications:
Type: Digital
Ball bearings: yes
Metal gears: yes
Speed 6.0 V: 0.05 sec / 40°
Torque 6.0 V : 6.4 kg/cm
Application: 1/10
Dimensions: 40.5 × 21 × 26.5 mm
Weight: 50 g

Servo arm gear 23t (S)
