Savöx SC-1251MG Servo 9Kg 0,09s Coreless Black Edition Low
Original price was: $70.90.$42.54Current price is: $42.54.
- Hassle-Free Payments
- Free Shipping, No Compromise on Quality
- Your satisfaction is 100% guaranteed.
- Your questions, our prompt answers.

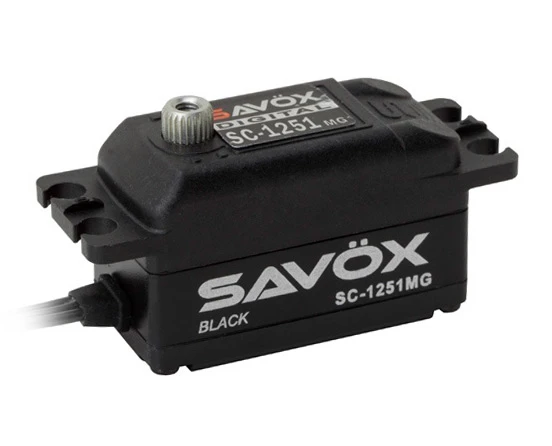

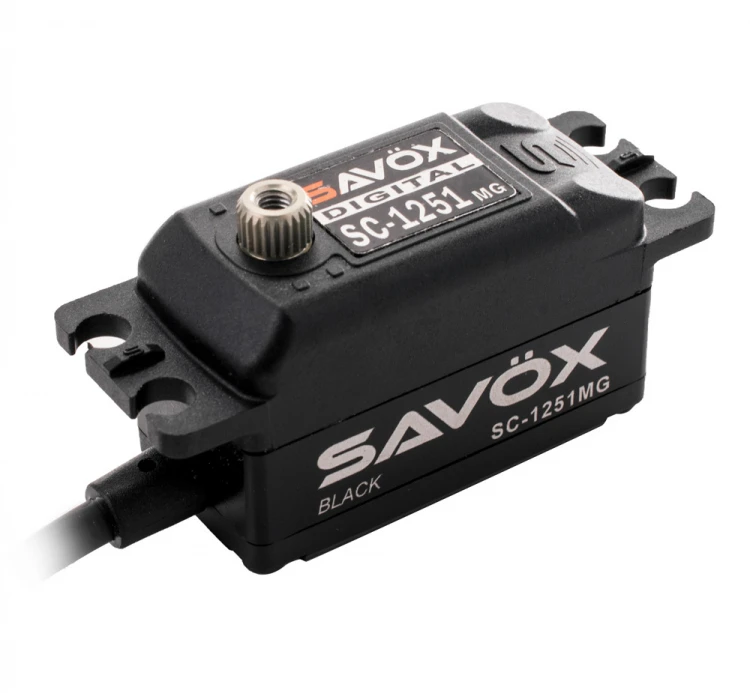

SAVÖX SC-1251MGBE – Metal-Geared Digital Low-Profile Servo
The SC-1251MG is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution.
Features:
- Black Edition

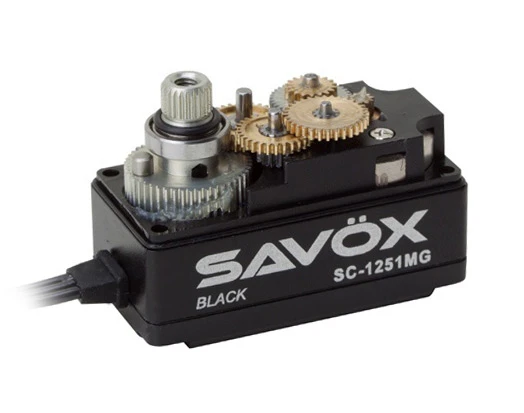

- Metal gear train ensures durability under harsh situations
- Ideal for 1/10 on road vehicles and some boat applications
- Aluminum case provides cooler operating temperatures
Specifications:
- Torque @ 4.8V: 7kg/cm
- Torque @ 6V: 9kg/cm
- Speed @ 4.8V: 0.10 sec/60 deg
- Speed @ 6V: 0.09 sec/60 deg

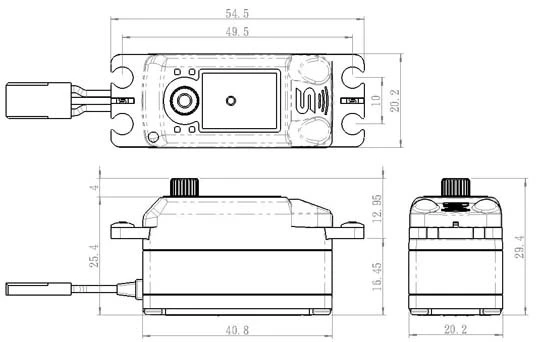

- Dimensions L x W x H: 40.3 x 20.2 x 25.4mm
- Weight: 44.5g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 150mA @4.8V, 180mA @6.0V
- Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 950 → 2050 µ second
- Maximum Travel: Aprox. 160° (700 → 2300 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
