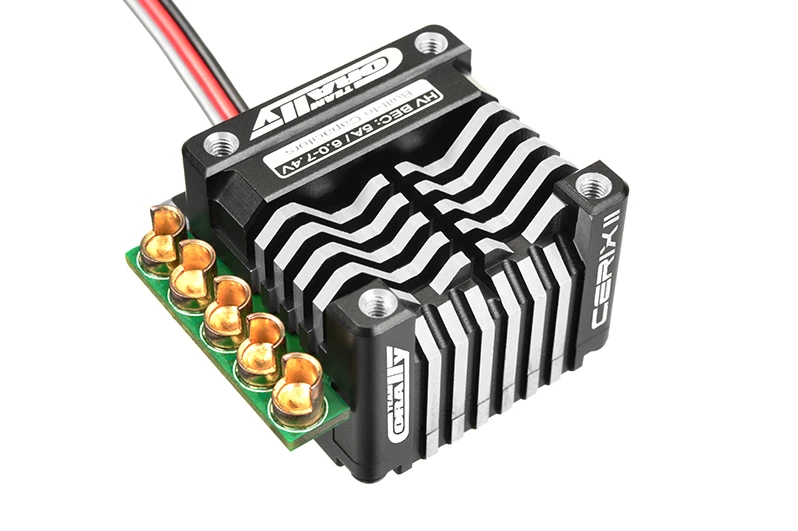

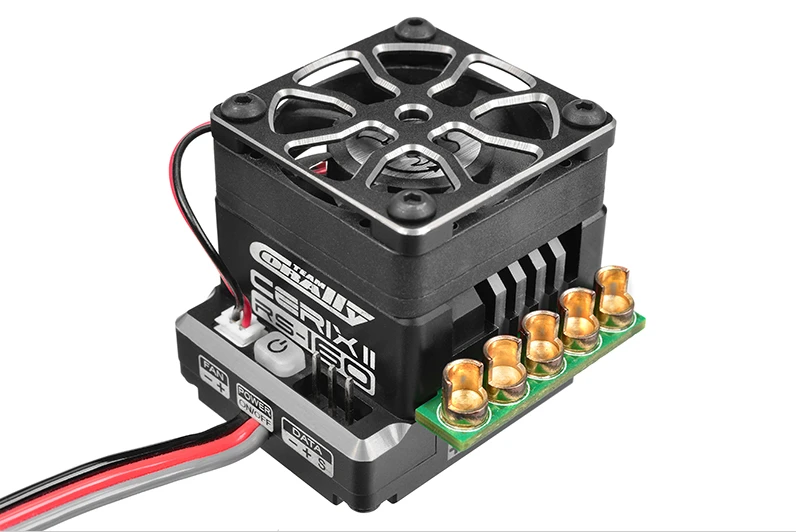

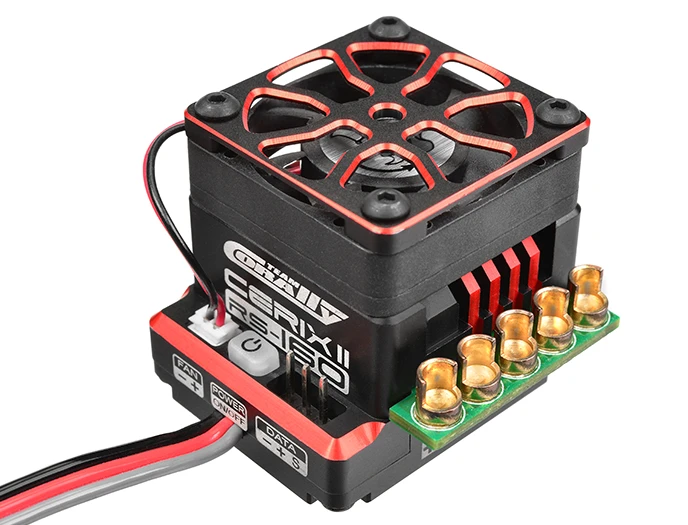

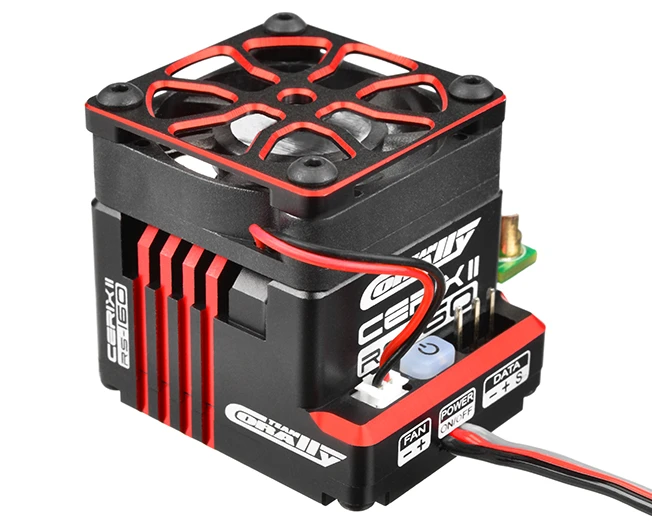

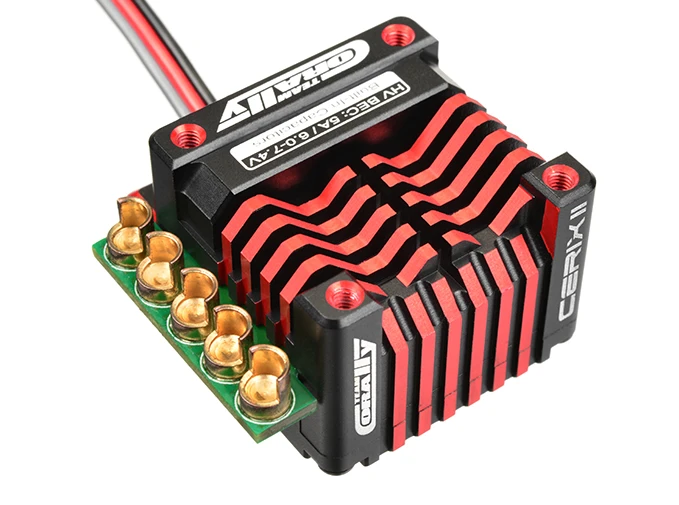

Team Corally Cerix II RS-160 “Racing Factory” 2-3S ESC For Sensored And Sensorless Motors – 160A: Black / Red
Original price was: $159.00.$69.00Current price is: $69.00.
- Hassle-Free Payments
- Free Shipping, No Compromise on Quality
- Your satisfaction is 100% guaranteed.
- Your questions, our prompt answers.
2-3S Esc For Sensored And Sensorless Motors – 160A
The Team Corally CERIX II RS-160 “RACING FACTORY” electronic speed controller for sensored and sensorless motors is being fine tuned for the today’s high power brushless motors. Everything can be set-up on these controllers to provide you the best functionality and performance.
The CERIX II RS-160 “RACING FACTORY” is manufactured with the highest grade components to ensure the lowest possible internal resistance resulting in a optimised performance. The CERIX II RS-160 “RACING FACTORY” controller give the 1/10 On-Road and 1/10 Off-Road competition racer what he needs. You will experience the best controllability of your 1/10 Racing Cars, no matter you use it with Spec or Modified motors
Features:
- For sensored and sensorless motors
- Manufactured with the highest grade components
- Ultra compact design
- Aluminum case for improved heat dissipation
- Built in Capacitors
- Built in power switch
- Advanced boost and turbo timing system for improved acceleration performance
- Enhanced throttle and brake control function.
- 10 programmed profiles can be stored in the ESC
- Adjustable BEC voltage 6.0V 5A or 7.4V 5A Current
- Powerful TC Link software to test motor timing and advise the best ESC timing setting
Programming Features:
- General Settings
- Running Mode
- Cut-off Voltage
- Overheat protection
- Motor Rotation
- Reverse Speed
Throttle Control
- Dead Band
- Punch Rate SW- Point
- Punch Rate 1
- Punch Rate 2
- Throttle Curve
Brake Control
- Initial Brake
- Drag Brake
- Brake Strength
- Brake Rate Control
- Brake Curve
Boost Function
- Boost Timing
- Start RPM
- End RPM
- Boost Constraint
- Boost Slope
Turbo Timing
- Turbo Timing
- Activation Method
- Turbo Delay
- Start RPM
- Turbo Slope
Power Specs:
- Application: 1/10 Touring – 1/10 Pan Car – 1/10 Off-Road – Crawlers
- Cont. Current (A): 160A
- Burst (A): 800A
- Nr of Li-xx Cells: 2 – 3S
- BEC: 6V 5A or 7.4V 5A
- Motor Type: Sensored – Sensorless
Motor Limits:
- 2S Li-Po
=> 3.5T o 1/10 On-Road
=> 5.5T o 1/10 Off-Road
- 3S Li-Po
=> 5.5T o 1/10 On-Road
=> 8.5T o 1/10 Off-Road
- Resistance: 0.00018 ohm

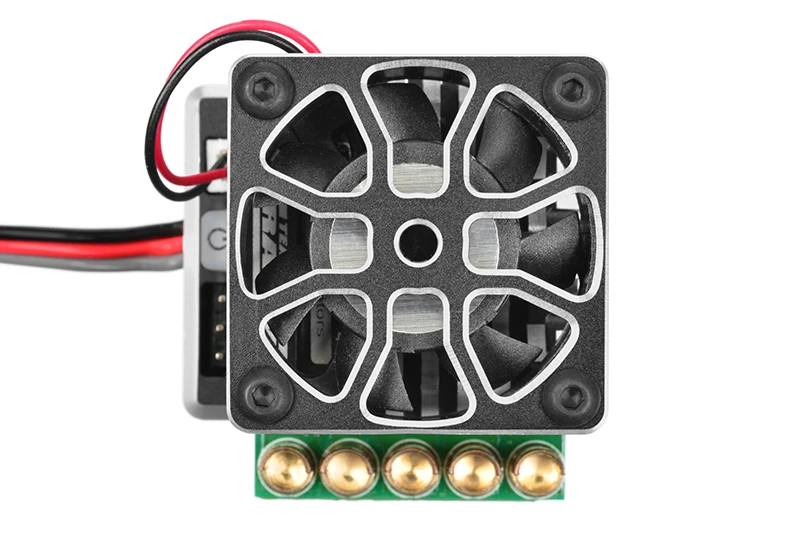

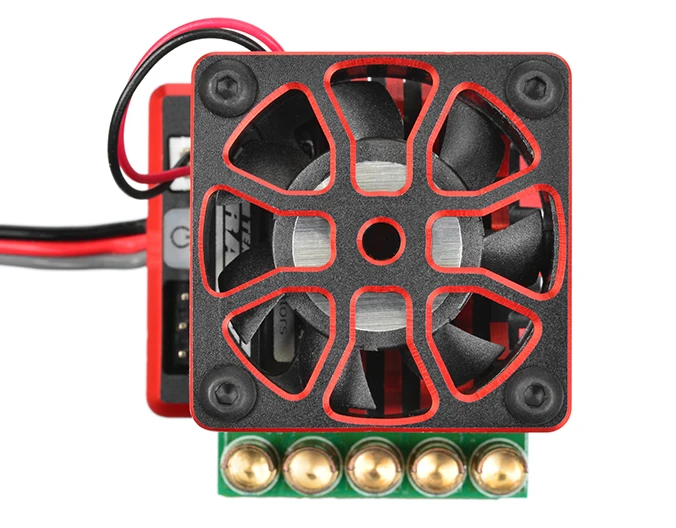

- Dimensions: 37x33x22mm (30mm Fan)
- Weight: 43g (51g Fan)

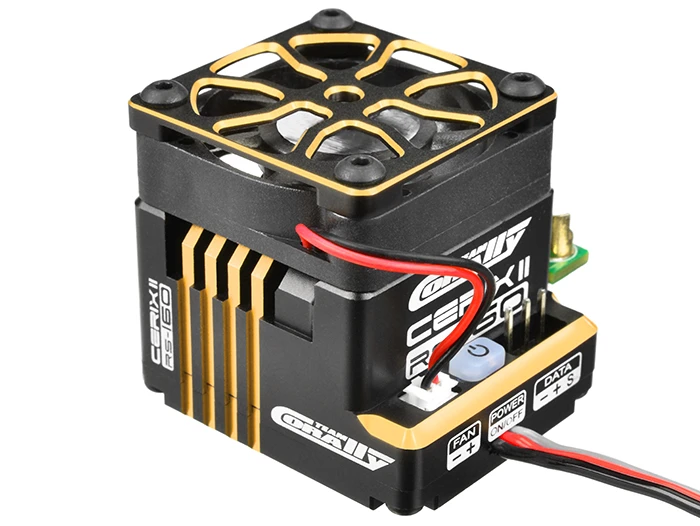

| Model | Black / Silver (C-53013), Black / Gold (C-53014) |
|---|
