Tekno RC Tekno Aluminum Servo Horn – M3 clamp – 25T

Product Description

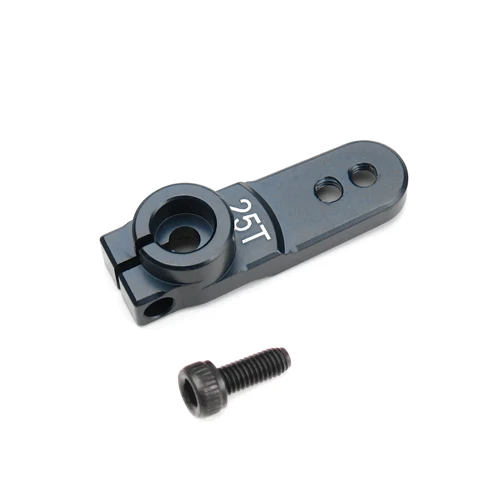

TKR5253B ? Aluminum Servo Horn (25T spline, M3 clamp, double hole)

For: Futaba, Pro-Tek, Savox, Highest servos

The Tekno RC Aluminum Servo Horns were designed to minimize forcestransmitted back to the servo spline.  It utilizes a bottom mount designthat, as opposed to a top mount, lowers the leverage point.  This meansyour servos will be protected better to keep you in the race.

There are two mounting positions to fine tune your application.  Ahefty M3 locking screw ensures the servo horn will never come looseagain.  The M3 screw is also easy to tighten down compared to thesmaller M2 screws that easily strip out on other servo horns.  Use TKR1325 (M3x14mmflathead screw) for mounting the steering linkage to your Tekno RCvehicle.  Use thread locking compound on all metal-to-metal connections.

These were designed specifically for the Tekno RC line of vehicles, but they can be used in most other applications as well.

**We strongly recommend using the inside (short) mounting hole foruse in Tekno RC vehicles.  This will make the steering response smootherand also protect your servo better.

Length:

16mm

20mm
